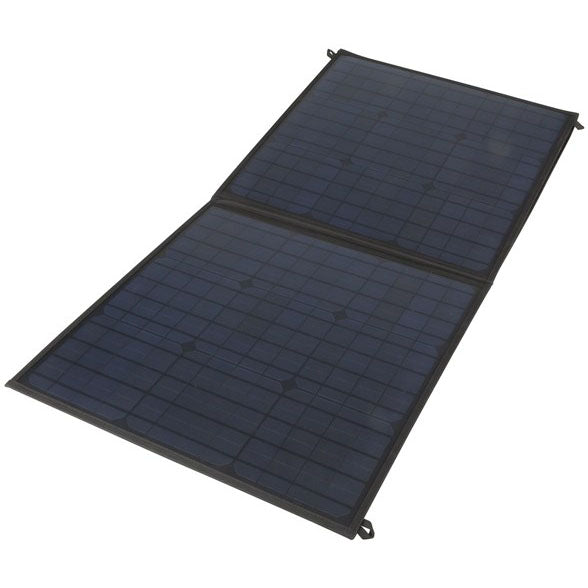

100W Canvas Solar Panel Blanket for use with Brass Monkey Fridges/Freezers!
Note: This unit does NOT have a voltage regulator like our other blankets, and will only work with the Brass Monkey battery Fridge/Freezers. It connects directly into the fridge unit. See here for our other 200W Canvas Solar Panel Blanket
With this 100W Canvas Solar Panel Blanket, you can keep your battery supported Brass Monkey fridge/freezer running for the entire trip without the need for mains power or a noisy generator. The blanket is designed to connect directly into the Brass Monkey Fridge/Freezers which have a built-in Lithium battery and solar support.

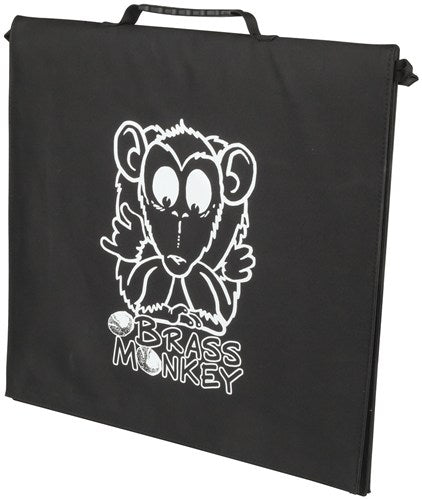

Simply lay the blanket in full sunlight on the ground or across the car bonnet and connect it directly into the fridge via the 2.5mm DC jack. Small loops around the blanket enable you to secure the blanket to avoid it being blown away in strong wind. When not in use, the blanket folds away flat for easy storage.

|
Features
- 100W
- 2.5mm DC jack for power connection to fridge
- 5m Cable Length
Specifications
- Solar Panel Type: Monocrystalline
- Open Circuit Voltage: 21.6 V
- Short Circuit Current: 5.2 A
- Voltage at Power Max: 19.0 V
- Current at Power Max: 5.2 A
- Power Connector: 2.1mm DC Jack
Dimensions
- Folded: 520 x 520 mm
- Unfolded: 1554 x 520 mm
- Weight: 3.4kg
|
 |
