Description
Increase Your Outdoor Living Area - Fiamma Privacy Room
The Fiamma Privacy Room is an awning wall kit to suit the Fiamma F45S and F45L Fiamma Awning. Double your outdoor Living Area to enjoy the outdoors in all seasons!
This is the newer & genuine Fiamma Modular Privacy Room including larger windows, rounded window frame design and a 2 tone modern grey finish.
Included Standard in every Fiamma Privacy Room
- Front Panel with Window
- Independent door that can be fitted to the left or right of the front panel
- 2 x Side Panels with Windows
- Fiamma Fast Clip System & Installation Kit
- Fiamma Mega Bag for storage
Installation Notes:

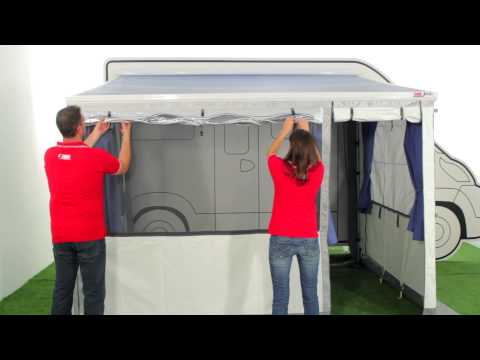

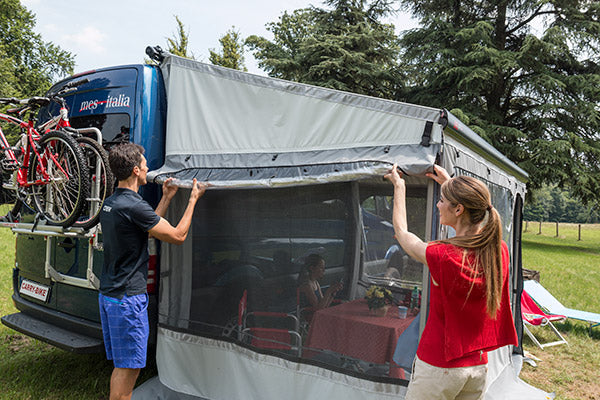

The Privacy room's side panels slide into place once the Fast Clip system is installed. The front/main panel is then slid into the Awning's Lead Bar and then a zip connects the side panels to the front main panel.
The Fast Clip system has a soft jaw which clamps onto the awning vinyl fabric. The Clip system is closed and engaged by closing the clamp on the underside. This creates a seal protecting the inside of your privacy room from the weather.
At the two corners of the awning along the vehicle, there are two poles which are supplied in the Fast clip system. These two poles trap a sponge material which is installed inside the Side walls to keep the side walls against the vehicle.
What Size Privacy Room Do I need?
The privacy rooms are available in Medium and Large Heights as well as 3m, 3.5m and 4m Lengths
Height:
The Medium variant is suited to Vehicles where the Awning is 225-250cm from the ground.
The Large Variant is suited to Vehicles where the Awning is 251-280cm from the ground.
Length:
The length of the privacy room is directly linked to the length of your awning. A 300 Privacy room suits a 3m Awning, 350 privacy Room Suits a 3.5m Awning, 400 privacy Room Suits 4m Awning
Medium 300 Privacy Room
Medium 350 Privacy Room
Medium 400 Privacy Room
Large 300 Privacy Room
Large 350 Privacy Room
Large 400 Privacy Room
Our Notes:
- The Fiamma Fast Clip System is included as a standard inclusion in this Privacy Room Kit
- Please Note actual awning Fiamma F45s/F45L is NOT included in this kit.
|
|
