Key Features
- This product is specifically designed for and supplied in a range of Jayco recreational vehicles.
- Requires a unit from the J35 power management system range to be installed
Description
GET INFORMATION ON YOUR HOUSE BATTERY AND WATER TANKS

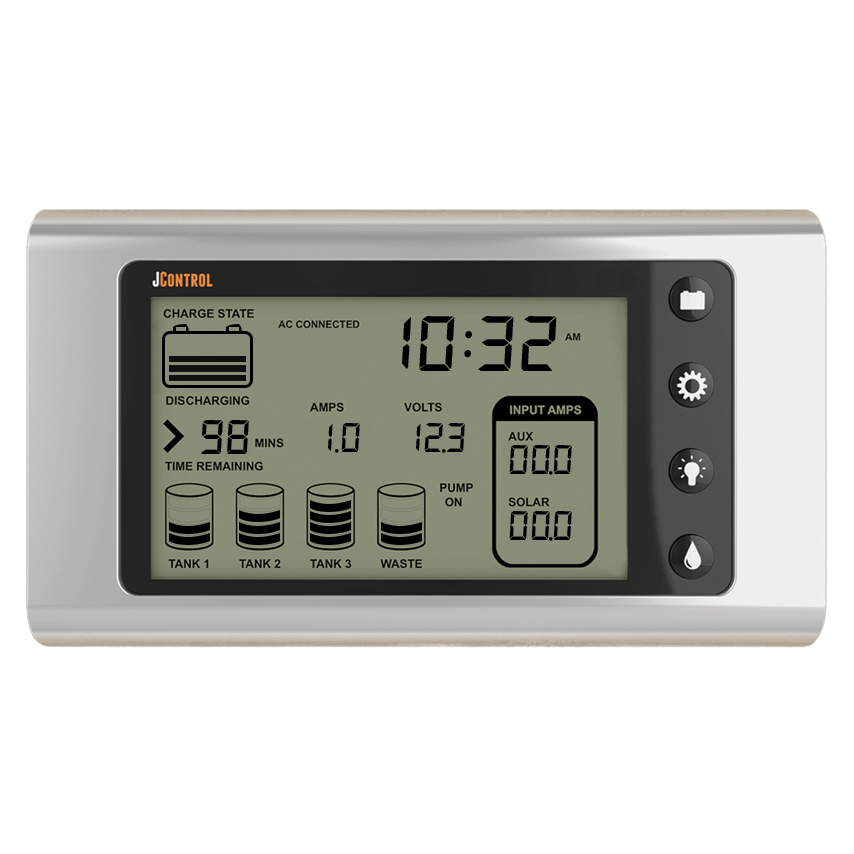

The 12V digital battery monitor JControl is a display and control unit that connects to a J35 and displays a range of battery and water tank information. It acts as a fuel gauge by monitoring the current going in and out of the battery. It also displays information such as battery volts, solar and AUX input current, charge and discharge status, remaining battery capacity and water tank levels. JControl can be mounted on any internal wall of your caravan.
MONITOR:
- Battery voltage and charge status
- Battery charging and discharging currents
- Auxiliary and solar charging currents
- Time remaining to discharge
- Level indication of up to 4 water tanks
- Time am/pm
- Water pump status
- Battery on/off status
FEATURES ALSO INCLUDE:
- Button to control a water pump through J35
- Button to disconnect the battery from the loads
Specifications
-
Output 0.9/3.0/4.0 Amps
-
Input 240V, 50Hz
-
Battery Size 12-12 Ah
-
Battery Type Lead Acid, LiFePO4
-
Battery Chemistry AGM, Gel, Calcium or Wet, LiFePO4
-
Charger Type Multi-stage
-
Power Supply Mode 12V
