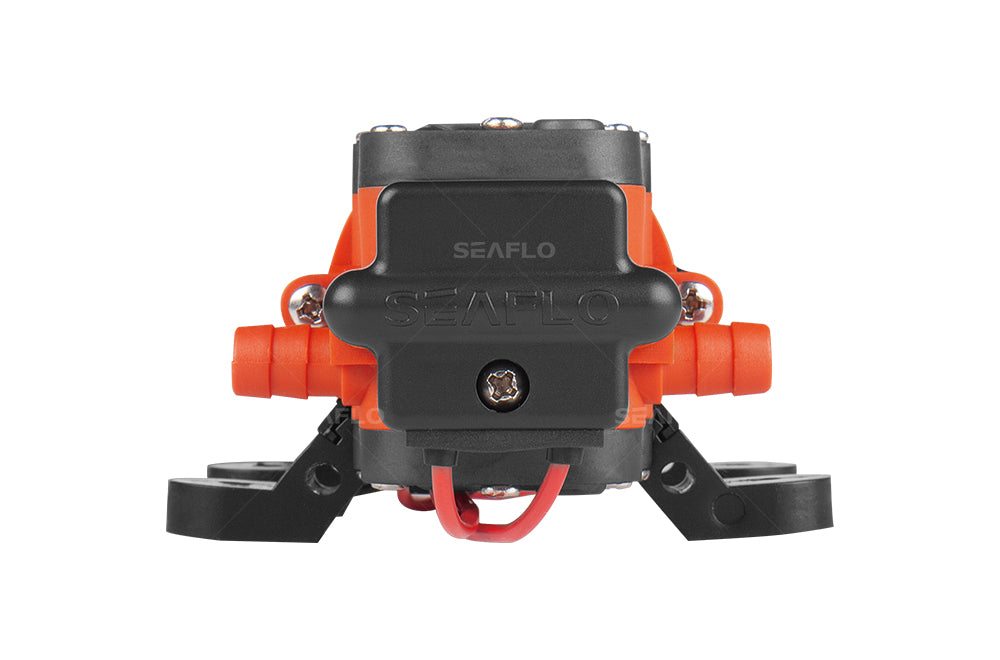

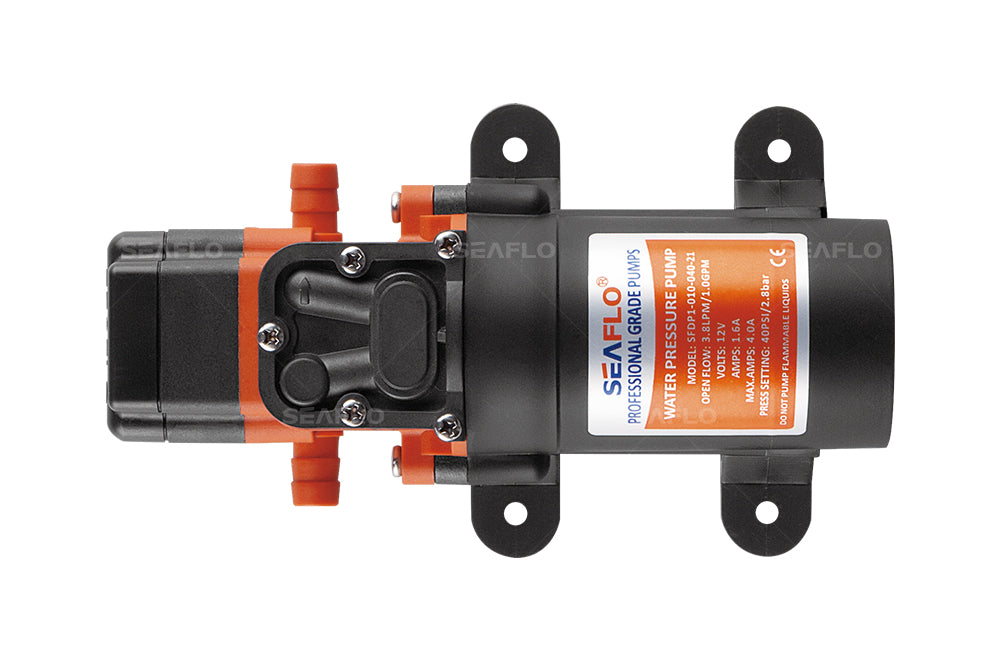

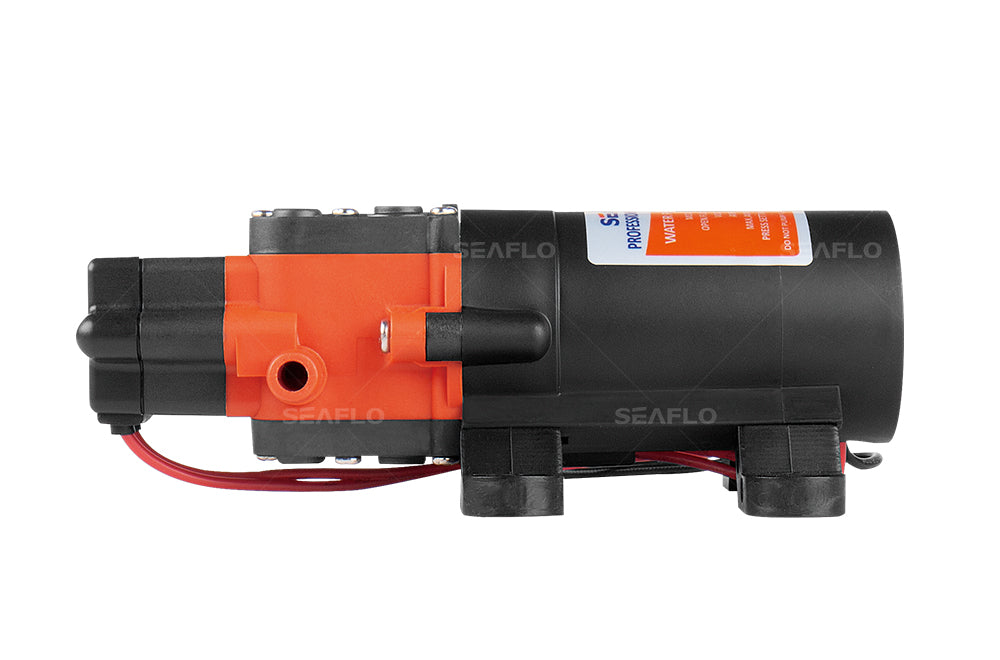

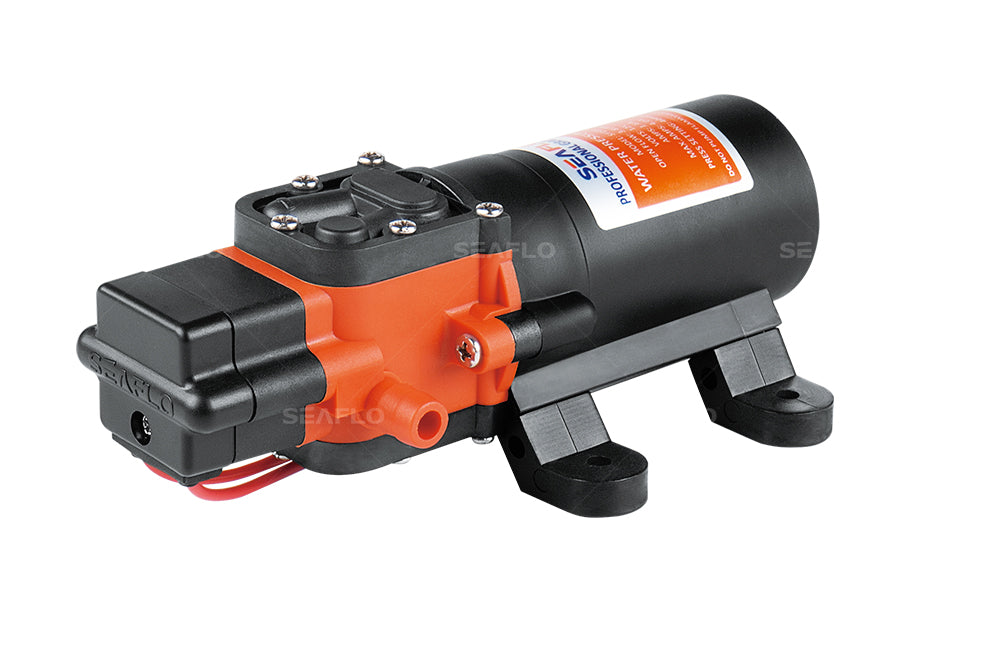

SeaFlo 21 Series Automatic Demand Diaphragm Pump

$54.99
SKU: 800-03304

As Australia's quietest 12V caravan water pump and carrying a 3 year manufacturing warranty, It's no surprise the RV Supreme from SeaFlo is quickly becoming the pump of choice for Australia's largest and leading RV/Caravan Manufacturers.

Kit Features

  • Compact design
  • Corrosion resistant valves
  • Quiet operation
  • Self-priming
  • Runs dry without damage
  • Low power draw (6 Amps Max Draw)
  • Santoprene diaphragm
  • On-demand pressure switch
  • Adjustable pressure setting
  • Industry standard mounting pattern (easy to retrofit)
  • 18 AWG, 13" long Leads
  • Capable of supplying 1-2 fixtures
CaravanMods Notes!
  • The 21 Series Pump from SeaFlo has a compact design and can be utilised for a wide range of applications including:
    • Liquid transfer
    • Spraying
    • Circulation
    • Filtration
    • Dispensing
  • 21 Series diaphragm pumps are manufactured for extreme conditions.
  • The pump head and components require minimal labour to replace.
  • They provide up to 1.2 gallons per minute, can run dry and has a built-in pressure switch to automatically start and stop the pump when faucet is opened and closed.

Specifications

  • 12V Operation
  • 3GPM or 9.5LPM
  • 55 PSI Cut off
  • Max. recommended temperature: 43 °C
  • Max. priming capabilities: 1.2m suction lift
  • Inlet/outlet Ports: 3/8" hose barb (Custom O-Ring Outlets available)
  • Weight: 0.57kg
  • Shipping Weight: 0.8kg
  • 3 Year Warranty
