Aluminium Caravan Pole Carrier - CLEARANCE

Caravan Pole Carrier Aluminium

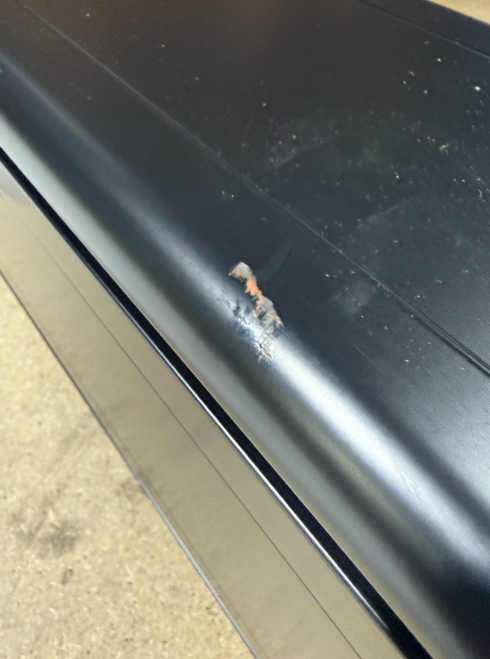

NOTE THIS UNIT HAS MINOR COSMETIC DAMAGE TO THE BODY SEE THE PHOTOS, if you need more information please call or email to speak with our team. There are no returns on factory seconds or clearance items.

The damage is located on one side of the pole carrier very close to the bottom and likely concealed in most installations.

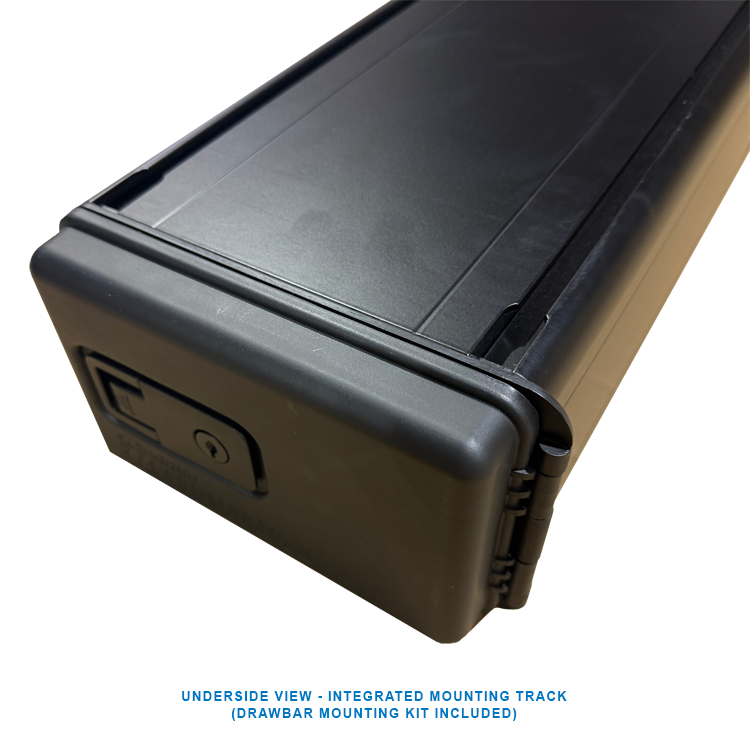

An aesthetically refined caravan pole carrier with lockable ends. The integrated mounting track on the underside of the pole carrier ensures you are able to utilise all available width in the install location.

Registered design: Lightweight yet strong structural form, offering integrated mounting to ensure maximum space efficiency

• Internal Capacity:
  • Caravan: Easily fits Anti Flap Kit and up to three roof rafters

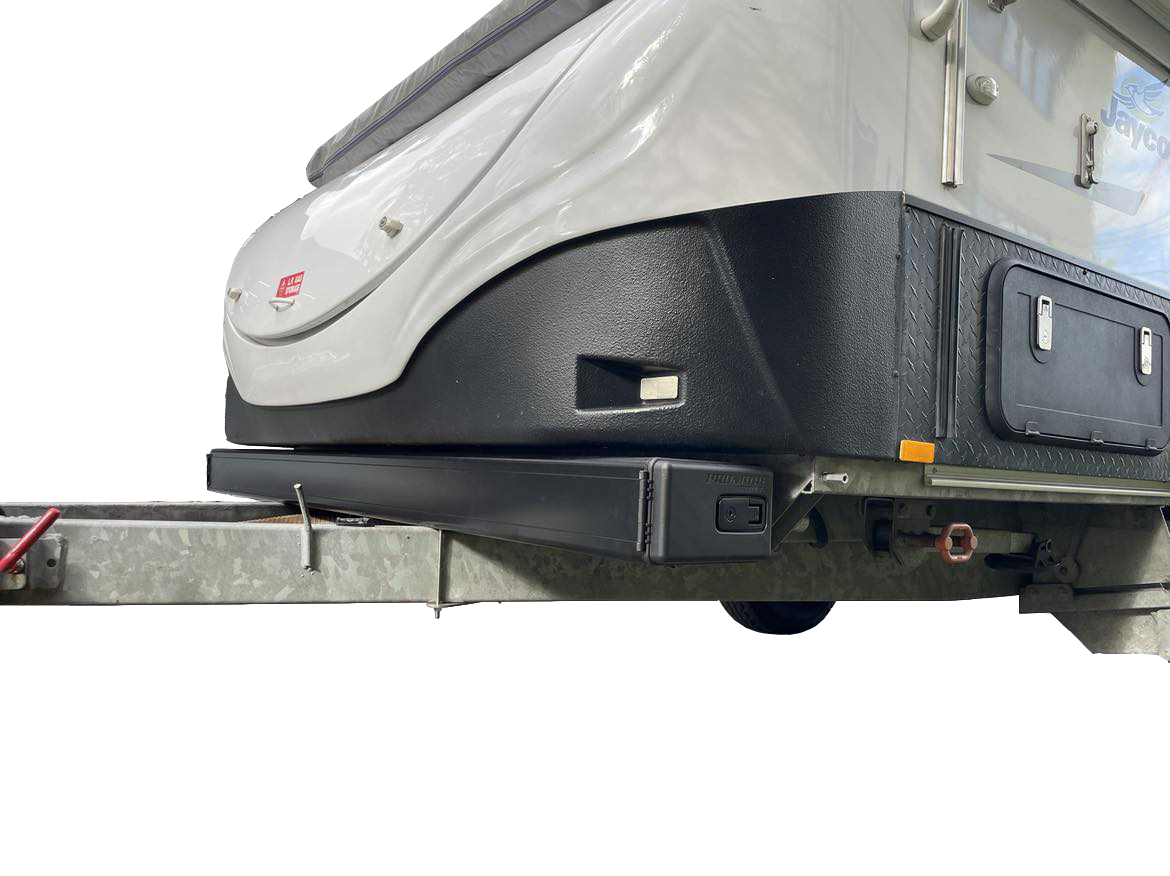

  • Camper Trailer: Easily fits poles required for camper trailer bed end fly and awning

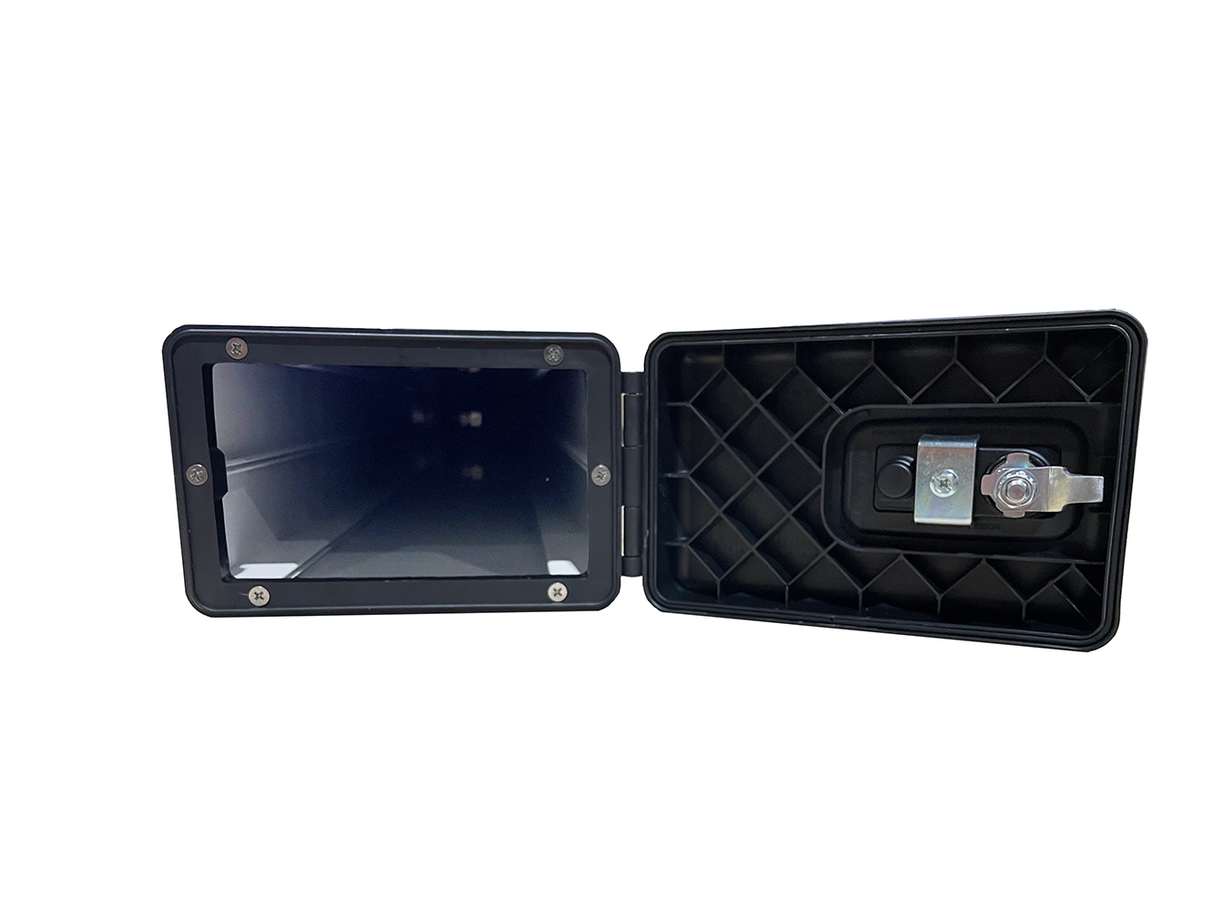

• Pole carrier door opening size: 168mm x 100mm - Internal dimensions of pole carrier slightly larger.
• Lightweight yet strong structural form.
• Innovative registered design hidden & integrated mounting

• Includes stainless steel drawbar mounting kit
• 1 year warranty


Specifications

2.3m Pole Carrier

•  Length: 237cm
•  Internal length: 230cm)

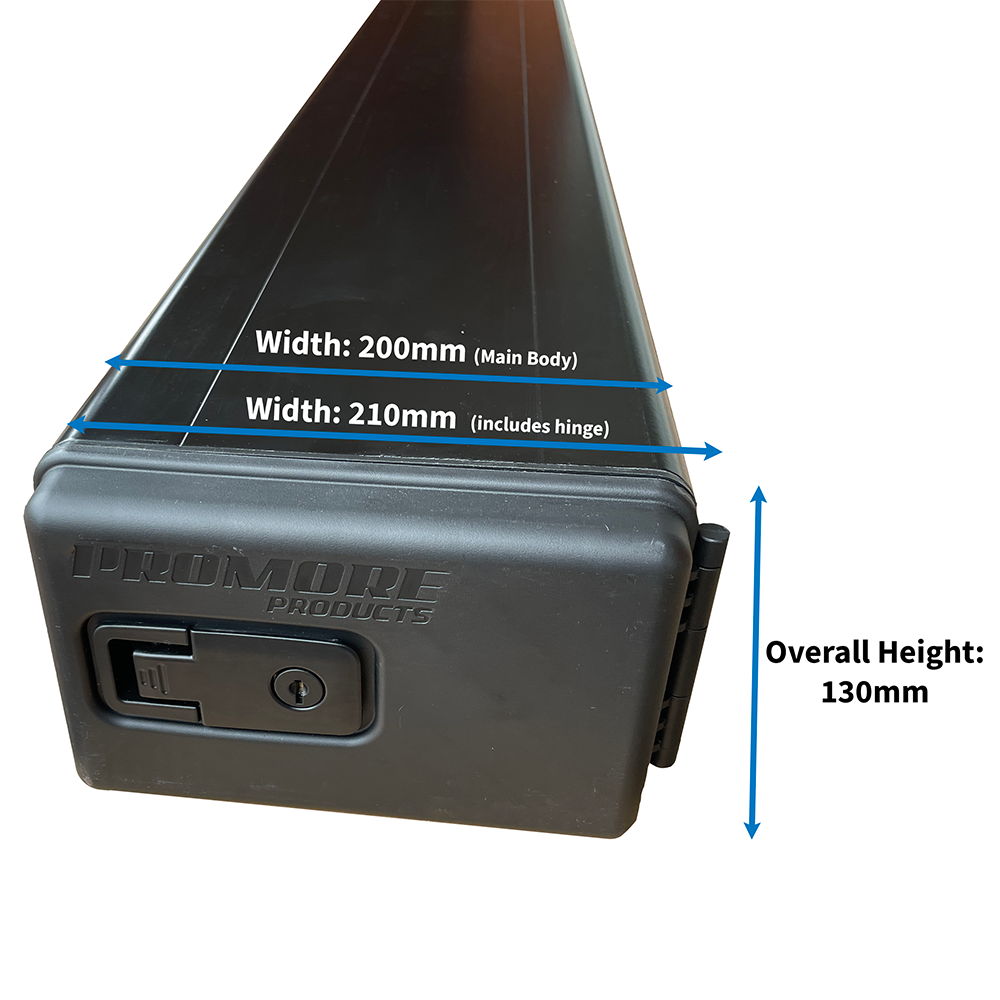

•  Width: 20cm body width (hinge width 21cm including hinge)
•  Height: 13cm
•  Weight: ~14kg
• Fits most brands of short, medium or long anti flap kit (assembled) + 3 roof rafters.
  • Simply measure your anti flap kit to ensure it is less than the internal length listed above)

Note we've measured and tested using our own Secura Bar Anti Flap kit and roof rafters, some other anti flap kits may differ slightly, It would be advised to check your own anti flap kit length before ordering.

The mounting kit included in all pole carriers consists of;

• 4 x Stainless Steel Channel T Nuts
• 4 x Threaded Rod (250mm Long)
• 4 x Nylon Lock Nut

• Mounting Kit - Install Guide
