Gator 12V Trailer Jack with Clamp
Gator 12V Trailer Jack with Clamp
Take the pain out of lowering or raising your trailer with our Gator 12V Trailer Jack with Clamp. Allows you to raise your towed vehicle to 355mm, great for making it level with your 4x4. Great for replacing your manual crank. The trailer jack includes a built-in LED light and a spirit level, a gator clamp that mounts directly to your drawbar, an emergency crank feature to lower or raise your jack when needed. Check out our range of camper trailer parts and accessories for more.
Inclusions
- Trailer Jack.
- Clamp.
- Head Cover.
- Nuts and Bolts.
- Manual Crank.
Specifications
- Max Load: 1800 kg.
- Foot Plate: 133mm.
- Handle: Manual Crank Override (supplied).
- Construction: Steel and polypropylene.
- Outer Finish: Powder Coated outer Tube.
- Inner Finish: Zinc Plated.
- Voltage Rating: 12V DC.
- Overall Dimensions: (H) 781mm x (W) 216mm x (D)140mm.
- Current Rating: 28amps Extending, 6amps Retracting.
- IP Rating: IP 55.
- Approvals: RMC and RCM.
- Gas Code Compliance: AS/NZS 5601.2.2020.
- Weight: 13 kg.
- Warranty: 12 Months.
FAQs

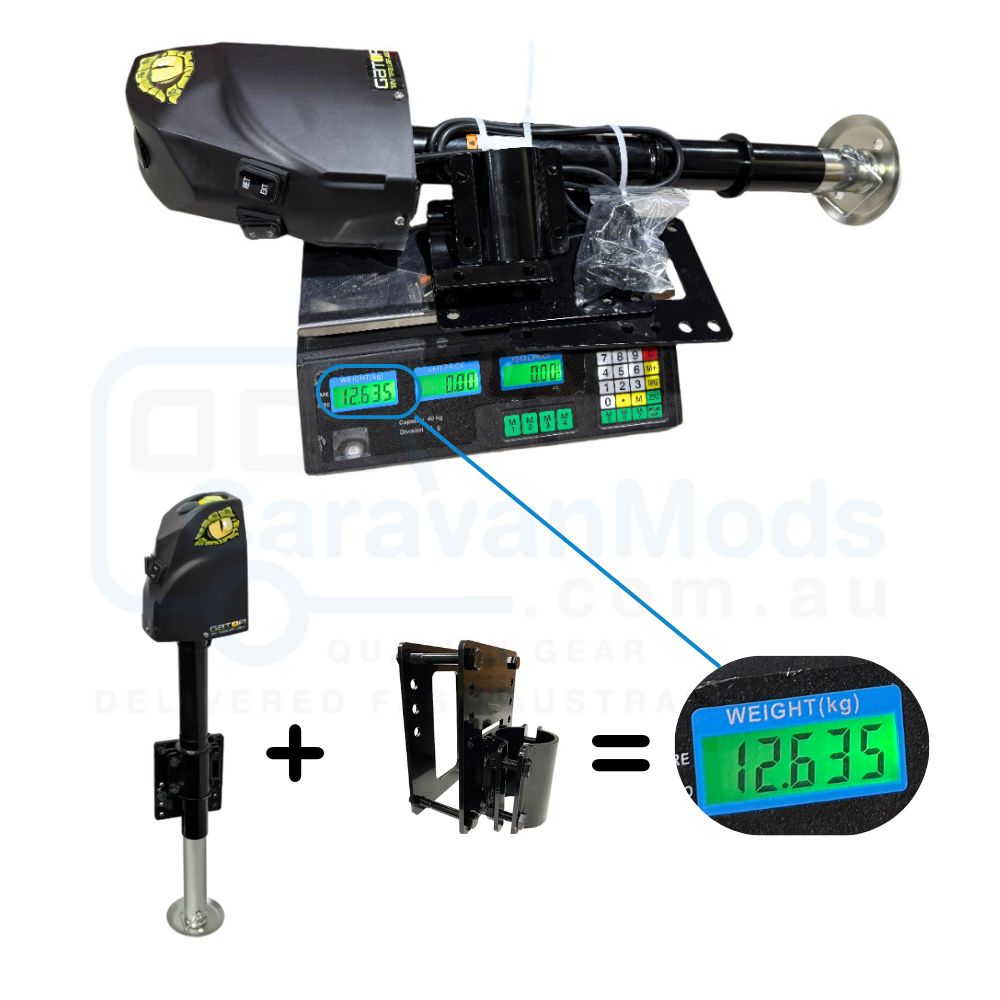

Question: How much does the gator electric jack weigh?
Answer: The jack + brackets weigh approximately 12.6kg

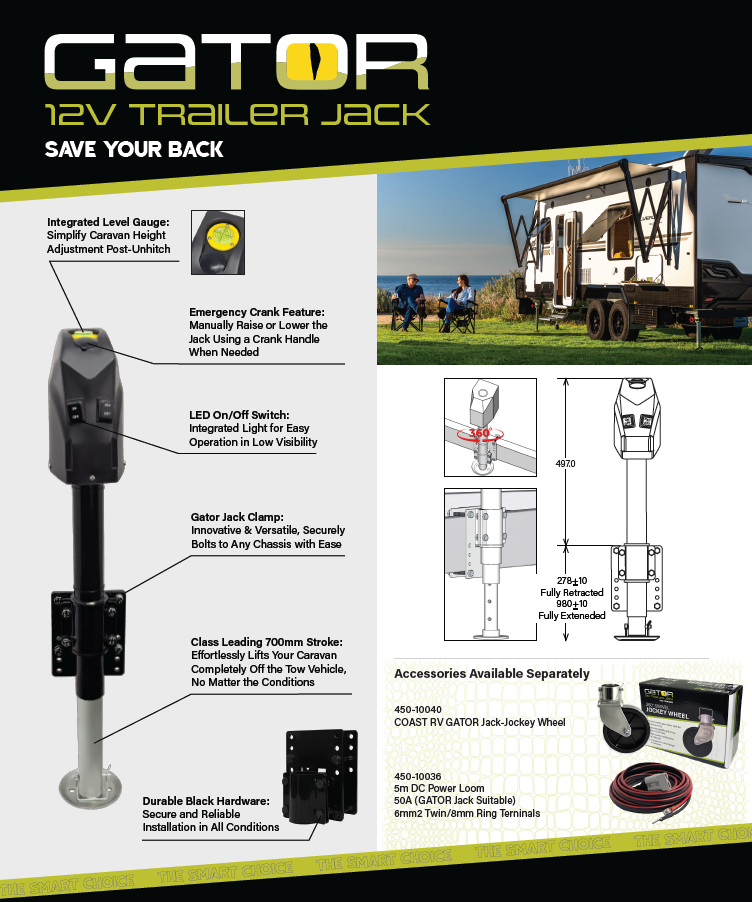

Features:
- Heavy-Duty Lift: 1800kg capacity, perfect for any caravan or trailer.
- 355mm Lift
- Extended Reach: 700mm stroke for easy hitching and unhitching.
- Precision Levelling: Built-in level for a perfect setup every time.
- 12v DC Powered: Runs off your RV or vehicle battery.
- IP55 Rated: Weatherproof design for durability in all conditions.
- Emergency Manual Operation: Supplied crank handle for backup use.
- Versatile Attachments: Includes both a flat stand and a jockey wheel.
