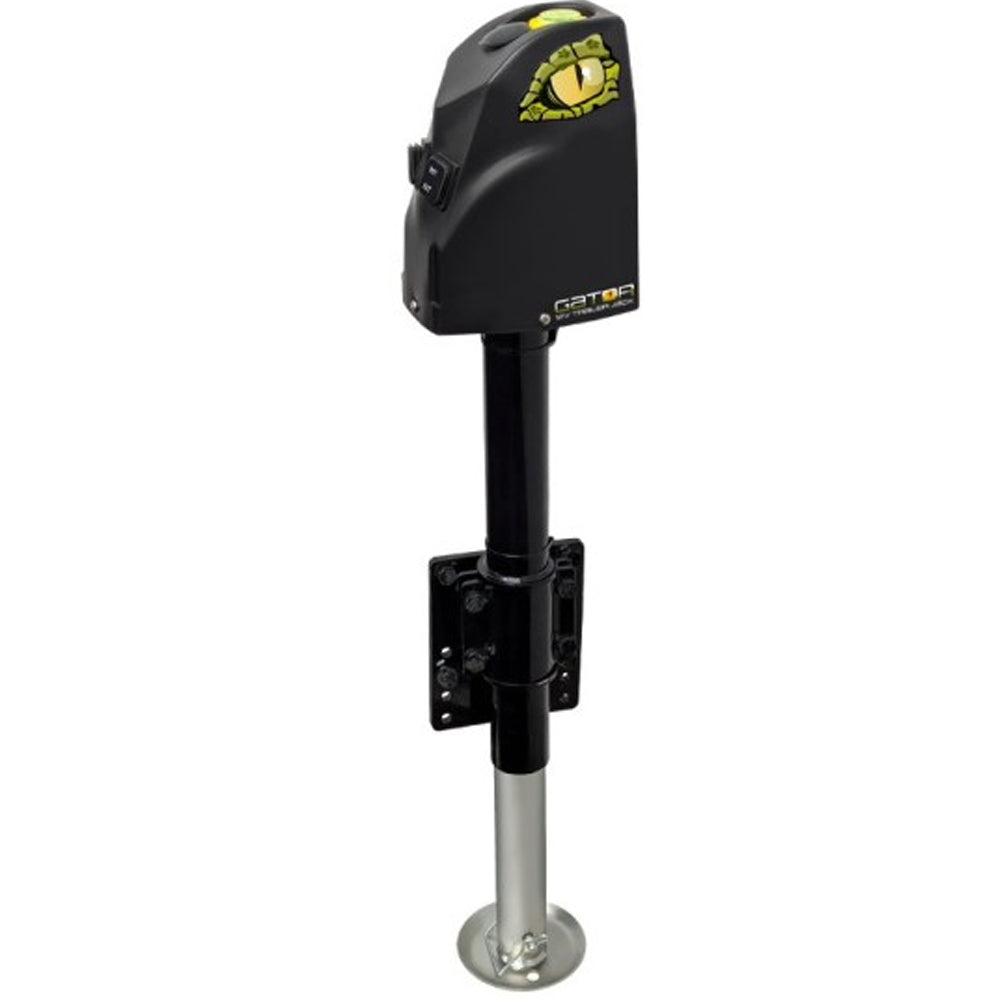

Gator 12V Trailer Jack with Clamp
Gator 12V Trailer Jack with Clamp
The Gator 12V Trailer Jack with Clamp takes the strain out of raising and lowering your trailer. With an impressive 355mm lift range, it delivers smooth, precise levelling with your 4x4 every time—no manual winding required.

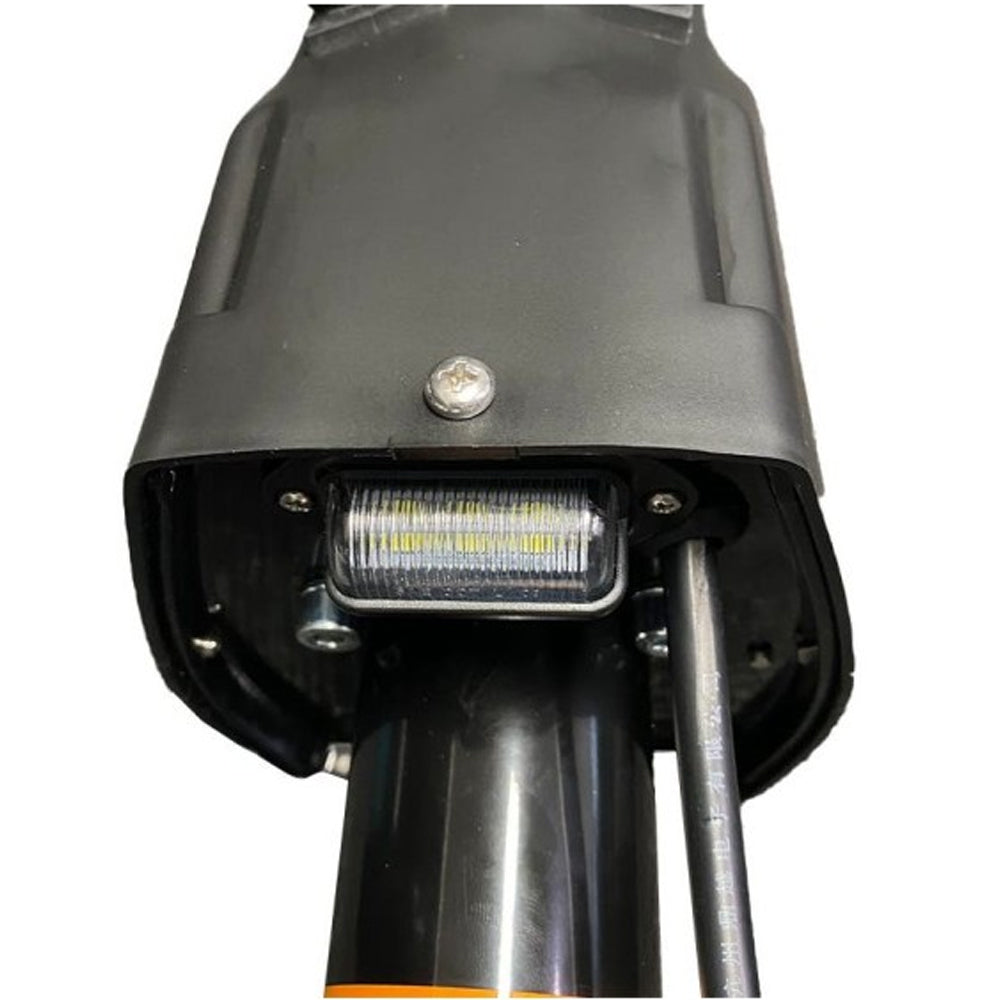

Built-in features like an LED work light, spirit level, and an emergency crank give you confidence in any conditions. The heavy-duty Gator clamp mounts directly to your drawbar for a secure fit, making this jack a game-changer for serious campers and tourers alike.
Upgrade your setup today and explore our full range of camper trailer accessories.
Inclusions
- Trailer Jack.

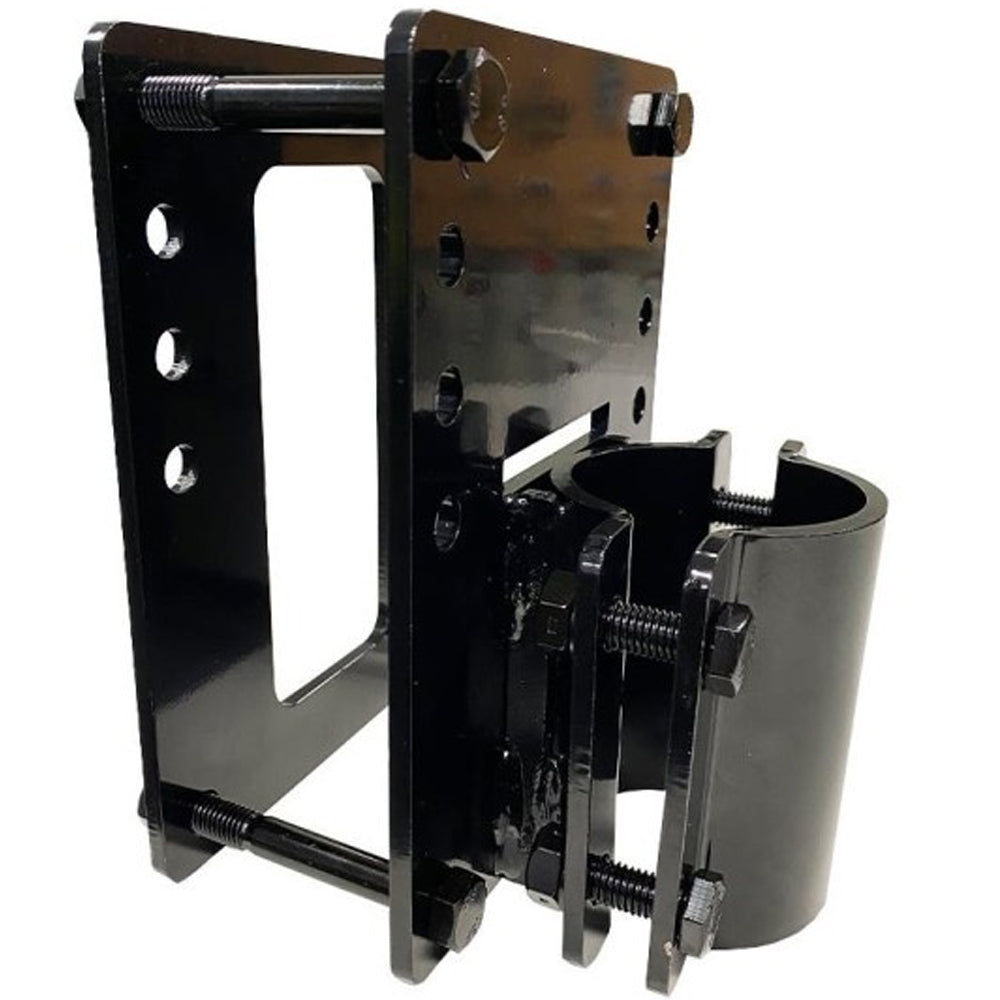

- Drawbar Clamp.
- Head Cover.
- Nuts and Bolts.

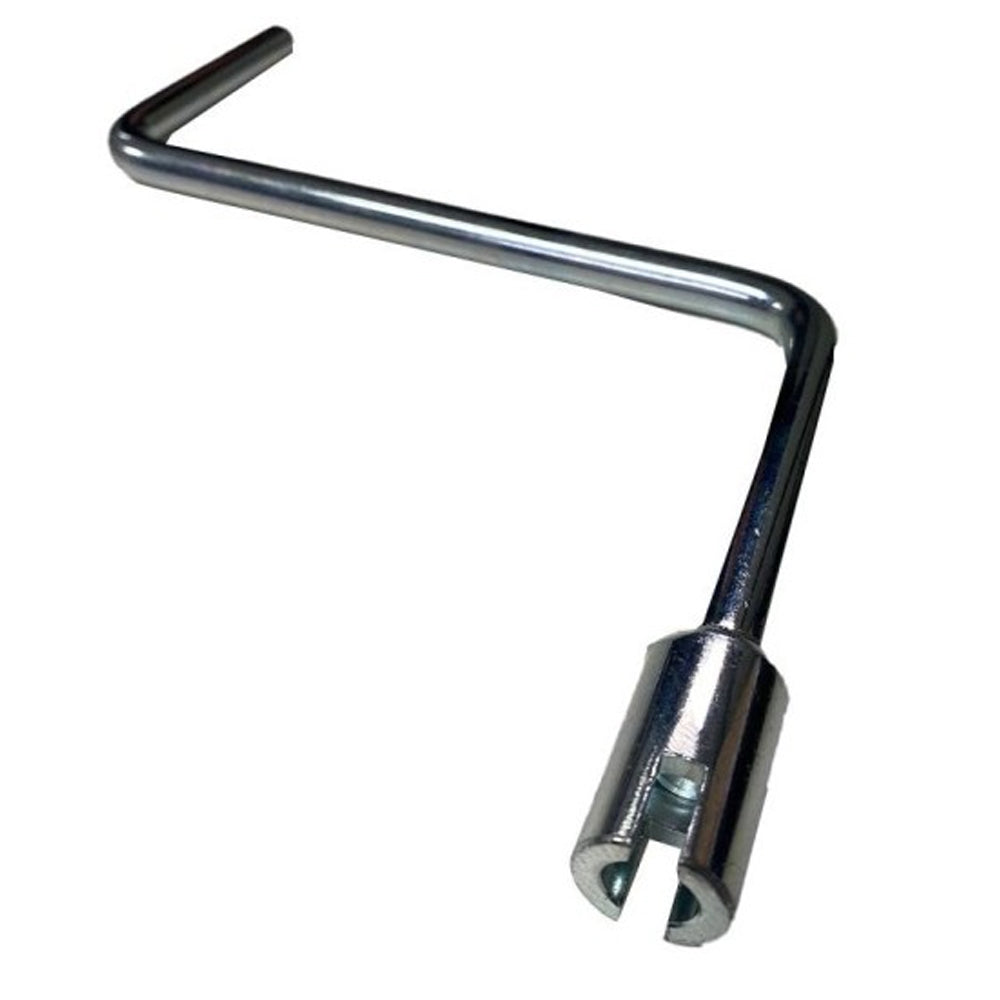

- Manual Crank.
Specifications and Features
- Max Load: 1800 kg.

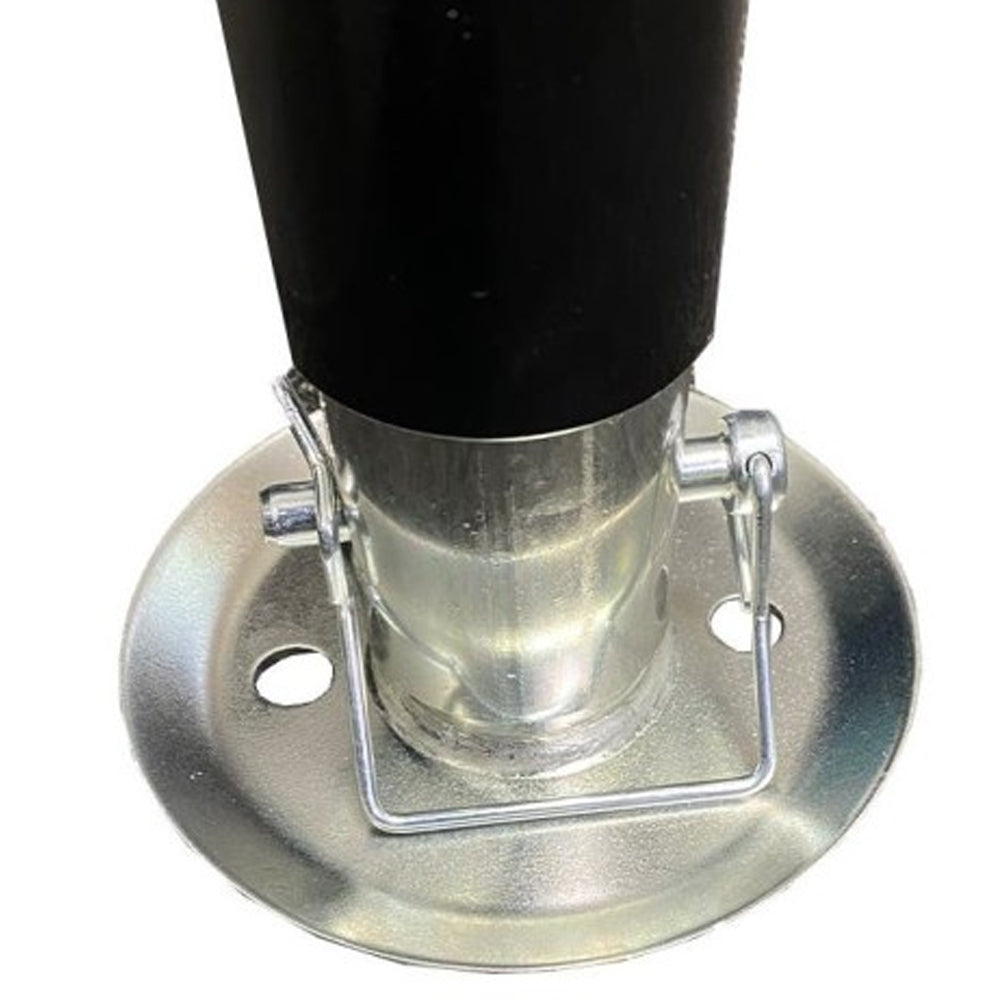

- Foot Plate: 133mm.
- Emergency Manual Operation: Manual Crank Override (supplied).
- Construction: Steel and polypropylene.
- Outer Finish: Powder Coated outer Tube.
- Inner Finish: Zinc Plated.

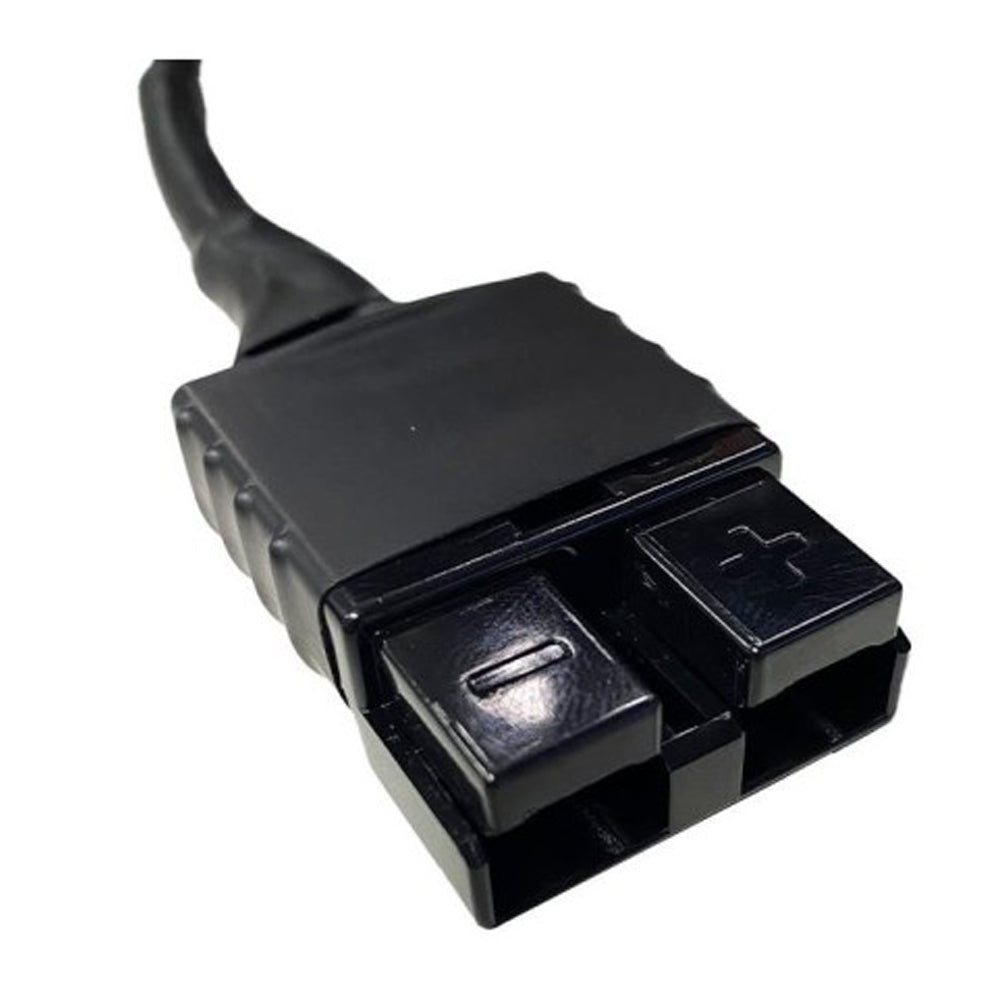

- Voltage Rating: 12V DC. Runs off your RV or vehicle battery.
- Overall Dimensions: (H) 781mm x (W) 216mm x (D)140mm.
- Current Rating: 28amps Extending, 6amps Retracting.
- IP Rating: IP 55, weatherproof design for durability in all conditions.
- Approvals: RMC and RCM.
- Gas Code Compliance: AS/NZS 5601.2.2020.
- Weight: 13 kg.
- Warranty: 12 Months.
- Includes a flat stand or optional jockey wheel (Not Included)

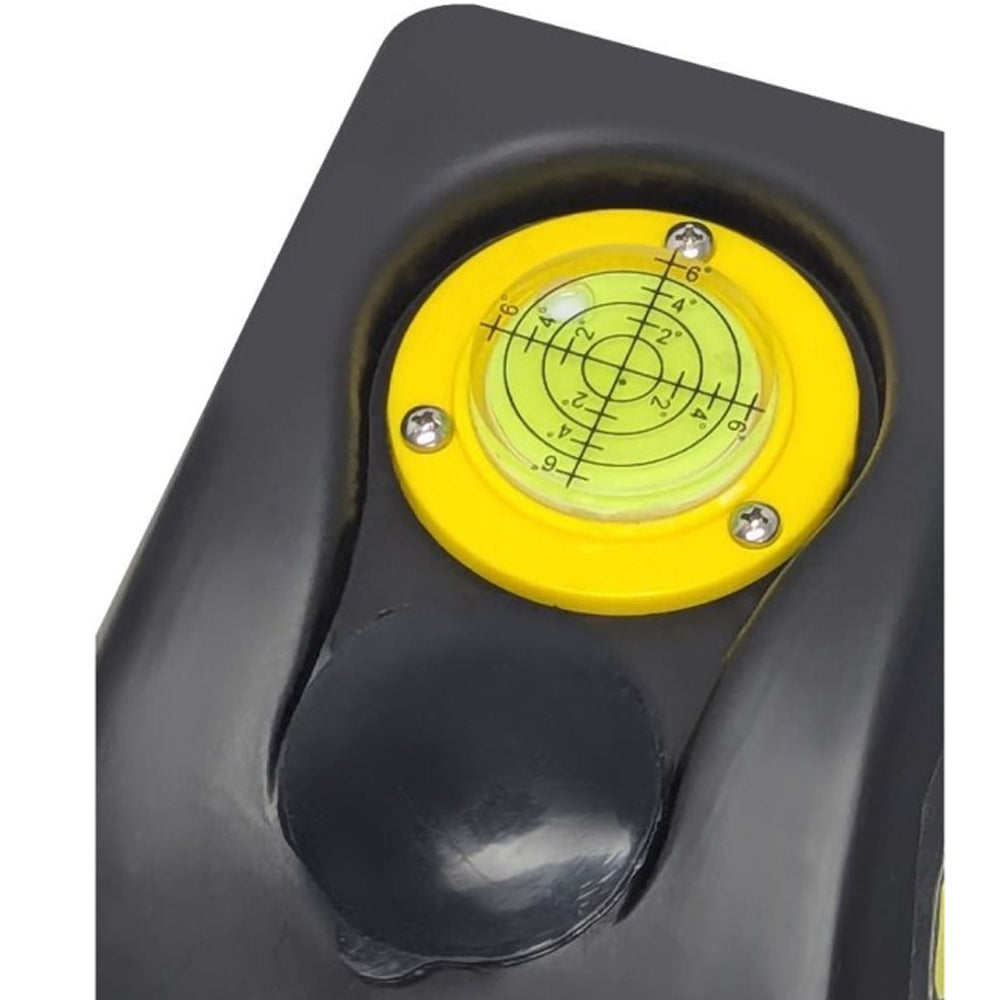

- Precision Levelling: Built-in level for a perfect setup every time.
FAQs

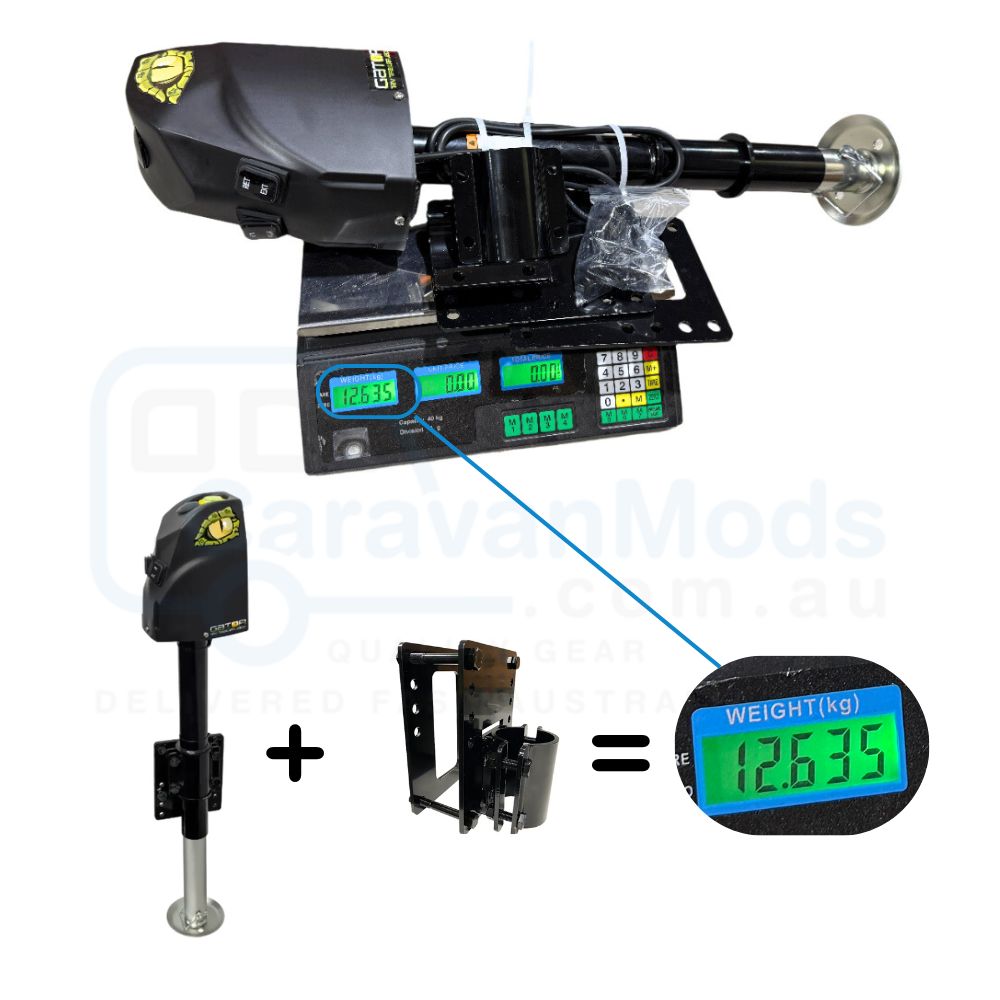

Question: How much does the gator electric jack weigh?
Answer: The jack + brackets weigh approximately 12.6kg
