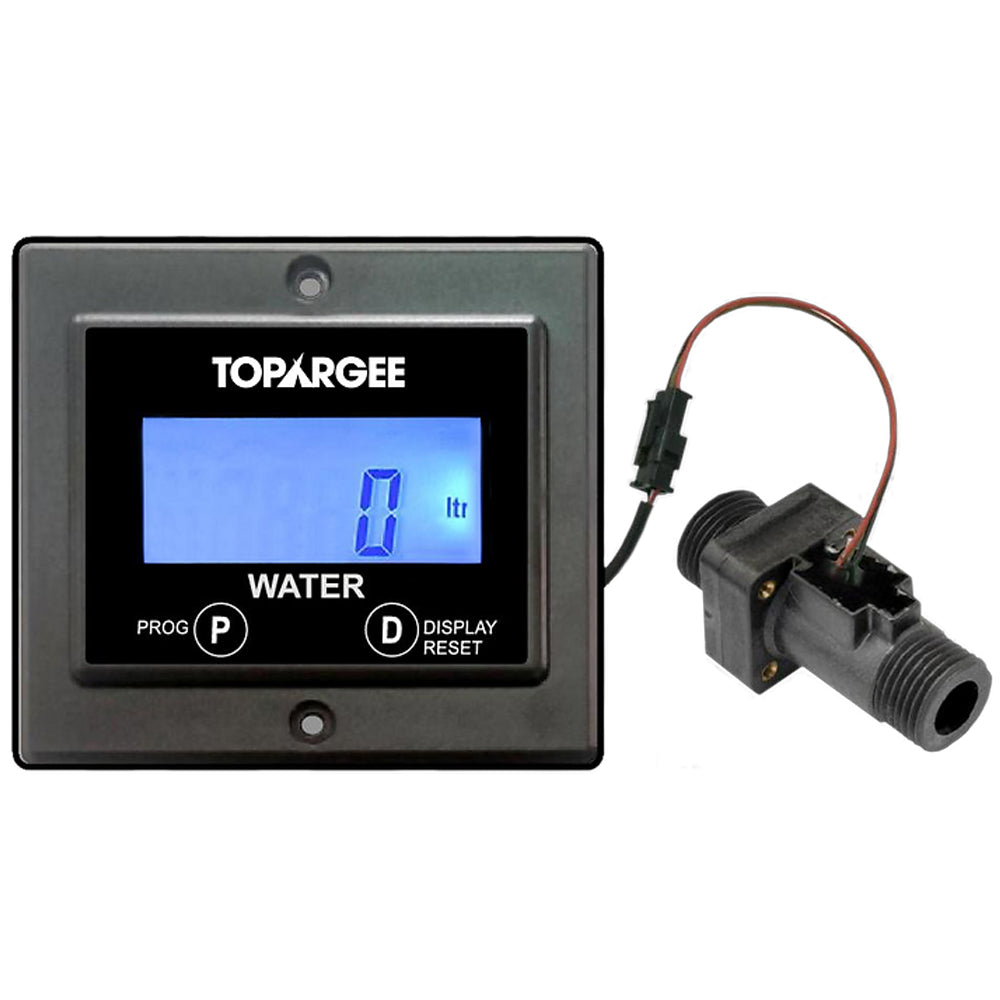

H2Flow Flush Mount Water Gauge with Flow Sensor
Ensure you have enough water when you go on long road trips with our H2Flow Flush Mount Water Gauge with Flow Sensor. The Water gauge comes with a flow sensor and a recessed water gauge panel, capable of reading multiple water tanks of any size. It's designed to sit flush in your caravan, for a more streamlined look. Great as an alternative to a water tank dipper and no need to drill any holes.
|
|

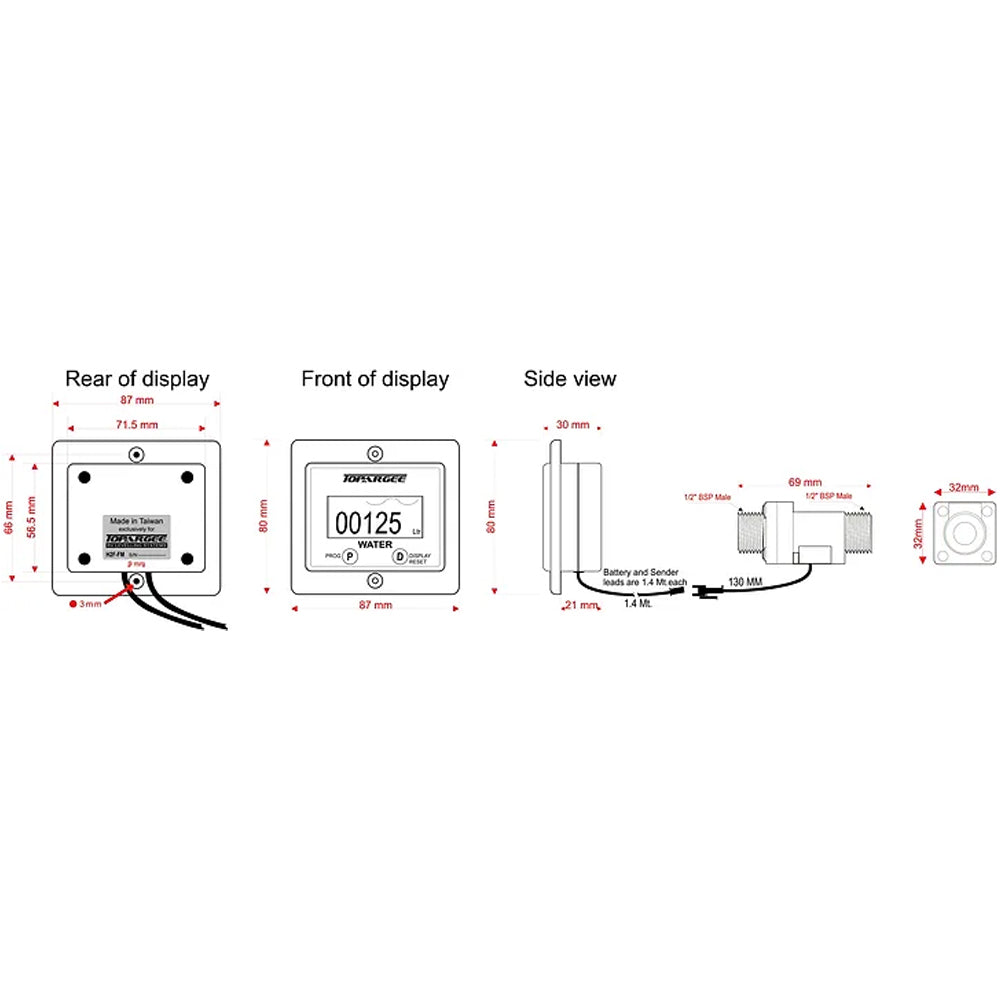

Specifications
- Water Gauge.
- Flow Sensor with the thread specifications of 1/2in BSP Male.
- 12v System.
- 2-Pin inlet lead cable to power system. Recommended to get the 12v power from the water pump circuit.
- 3-Pin outlet 1.4m lead for flow sensor connection.
- Customise it to either litre or gallon.
- Large backlit LDC Screen.
- One unit is capable of calculating the total volume of multiple tanks up to 99,999 litres.
- Real-time display of water usage, not just Full/half full/empty.
How to Install
- Cut a made-to-measure hole and push the gauge into place, be sure to secure the screws.

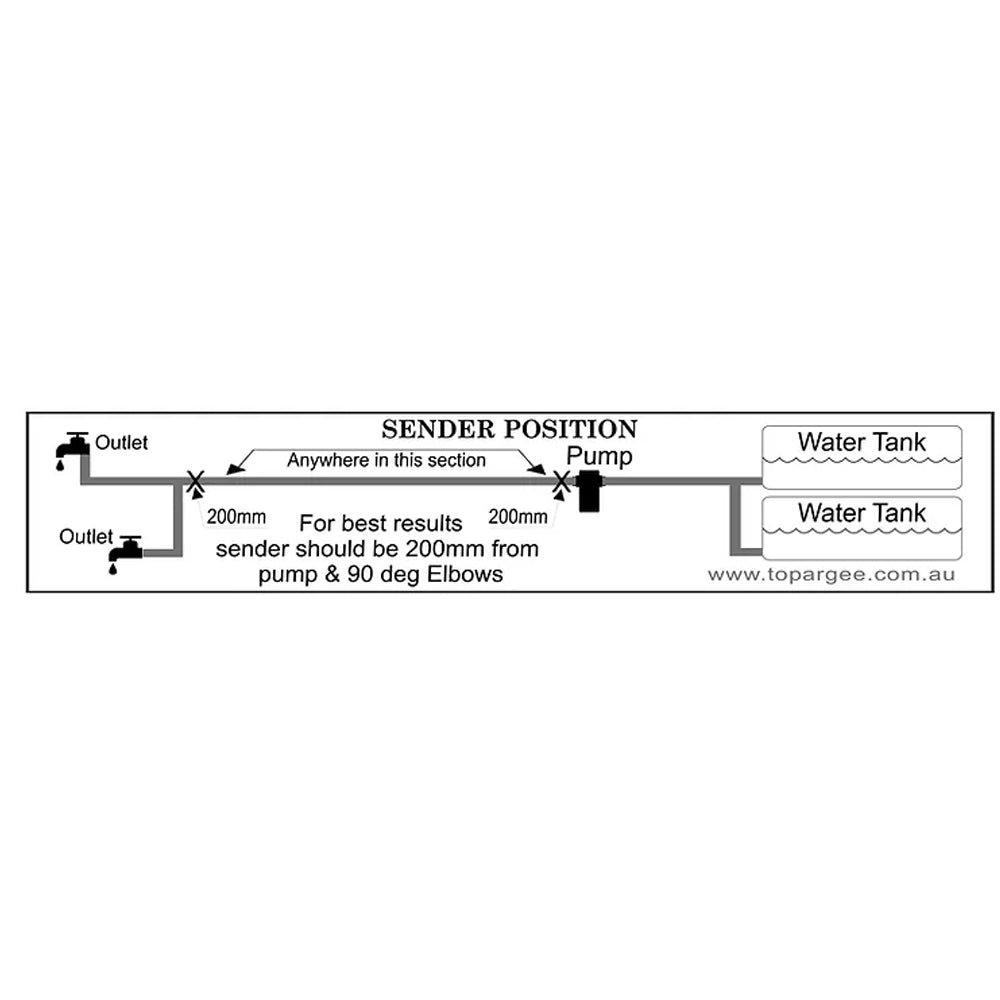

- Install the flow sensor 20cm after the water pump, and ensure it's fitted with the water flow in the direction of the arrow.
- Cut a section on your John guest water pipe and add John Guest fittings to each side. If you have a softer 12mm food-grade hose choose to add our brass fittings with pipe clamps. Use plumbing tape to avoid leaks.
- Screw in the flow sensor and attach the 12V 3-pin cord to the gauge outlet, to start getting readings.
Please Note: Do not cut the flow sensor leads this will void your warranty. Use 1.4m or 3m extension leads instead.
