iCheck TPMS Pro Series Quick Connect Automatic Tyre Deflators Kit

$207.91
iCheck TPMS | SKU: ICTDK

Click & Collect Availability

Delivery and Shipping

Warehouse processing Time: All orders placed before 1pm leave our warehouse that same day.

Shipping Costs: To see shipping costs, simply add the product(s) to your cart and head to checkout. Express and regular shipping options will be available at checkout.

iCheck TPMS Pro Series Quick Connect Automatic Tyre Deflators Kit

Introducing the iCheck TPMS Pro Series Quick Connect Automatic Tyre Deflators Kit. The all-in kit provides everything you need to manage your tyre pressure. The kit includes four quick-connect automatic tyre deflators designed to quickly and efficiently deflate multiple tyres to your desired PSI level. In addition to the deflators the kit also includes a pressure gauge monitor with an LCD screen that accurately measures the pressure of your wheels, great for fine-tuning your PSI levels. The LCD screen can also display the amount of tread remaining on your wheels. Also a tyre repair kit, valve removal tool, four-valve cores and four-valve caps. Just clip them onto your tyres for an air-tight seal and watch the tyres deflate to be ready for your off road adventure. Check out our range of Icheck TPMS caravan accessories for more.

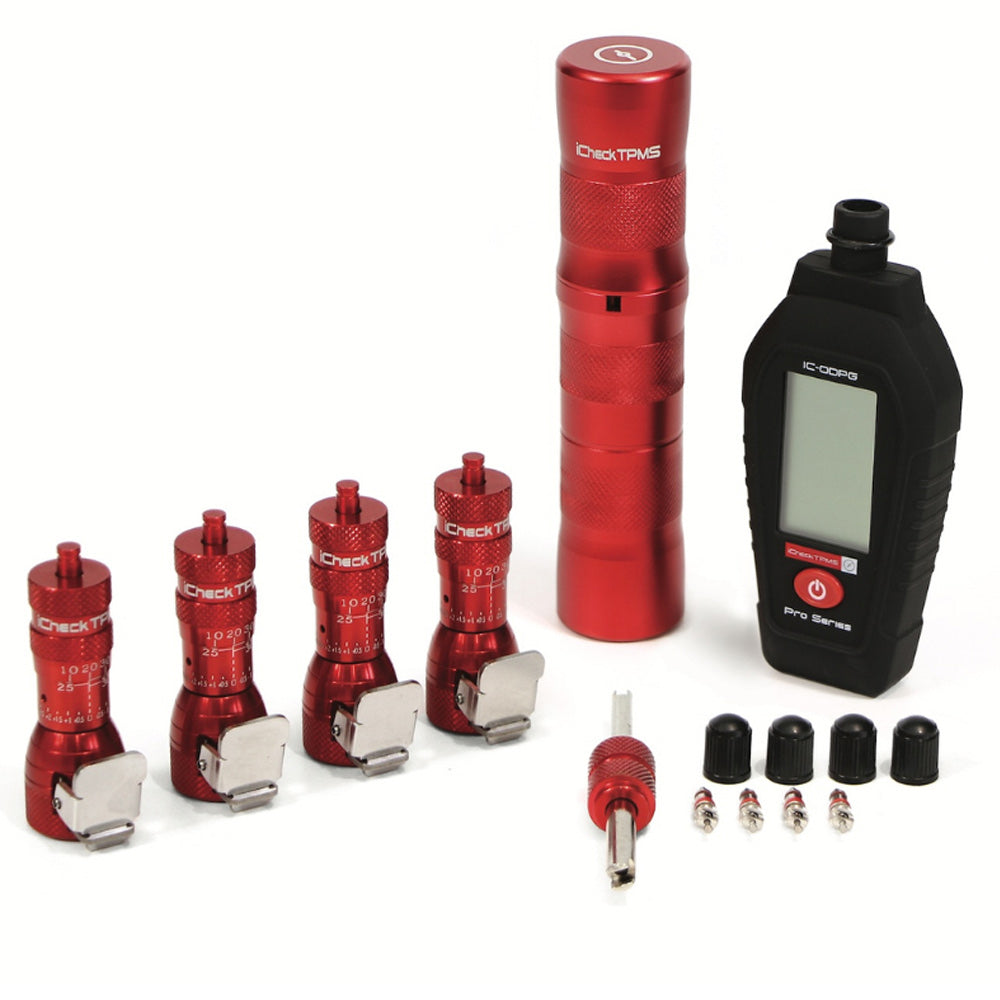

Inclusions

  • 4x Quick Connect Tyre Deflators.
  • 1x Digital Tyre Gauge.
  • 4x Valve Cores.
  • 4x Valve Caps.
  • 1x Tyre Repair Kit.
  • 1x Valve Removal Tool.

Quick Connect Deflator Specifications & Features

  • Adjustable from 10-30 PSI.
  • 6061-grade aluminium for Superior Durability.
  • Stainless Steel Precision Spring for Unrivalled Accuracy.
  • O-Ring Seal for Increased Accuracy.
  • Comes Apart in Two Pieces for Easy Cleaning.
  • Allows for fine-tuning at increments of 0.5psi.
  • 2 Year Warranty.

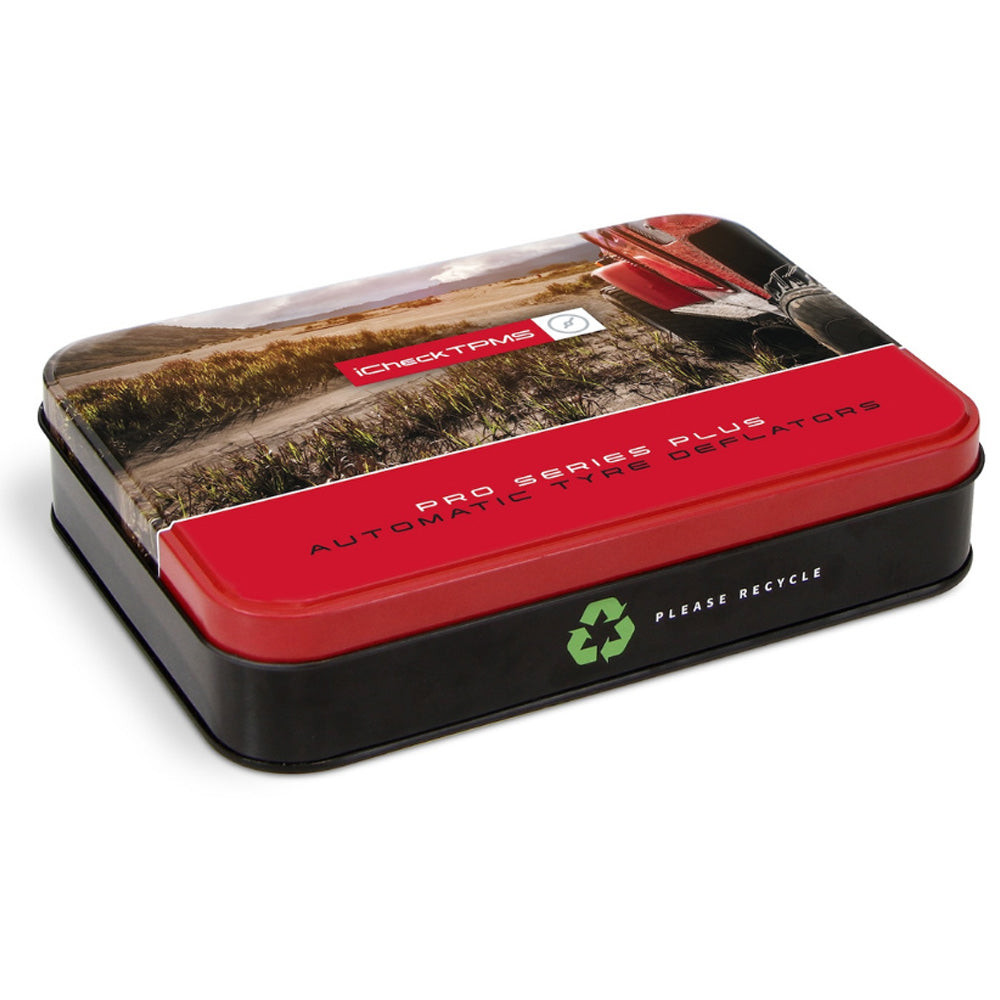

  • Protective Storage Tin.

Tyre Pressure Gauge Specifications & Features

  • Measuring Range: Pressure: 7.5~99psi, 0.5~6.8bar, 50~680kPa, 0.5~6.8kg/cm2, Depth: 0~15mm, 0~19/32inch.
  • Accuracy: ±(1%+1LSD).
  • Resolution: Pressure: 0.5psi, 0.05bar, 5kPa, 0.05kg/cm2, Depth: 0.1mm, 1/32inch.
  • Unit: Pressure: psi; bar; kPa; kg/cm2, Depth: mm; inch.
  • Operation Temperature: -20~60℃.
  • Storage Temperature: -20~60℃.
  • Power Supply: 2 pcs 3 V CR2032 lithium battery (included with purchase).

Tyre Deflator Instructions

  • Loosen the locking cap in an anti-clockwise direction.
  • Select your desired PSI on the adjustment ring.
  • Turn the adjustment ring until the bottom edge aligns with the corresponding horizontal line on the main body.
  • Line up the vertical line on the main body and adjustment ring.
  • Tighten the locking caps.
  • Press the clip to open the chuck and push firmly onto tyre valve.
  • To fine tune use the horizonal ruler that goes up and down in increments of 0.5. Eg, if you require a PSI of 18, align the adjustment ring to 20 PSI and twist adjustment dial to the right until 20 psi aligns with -2.

Tyre Repair Instructions

  • Remove the foreign object.
  • Insert the rasp tool into the hole and push it in and out a few times to clean the repair area.
  • Thread the repairing cord into the insertion tool. Ensure equal parts of the cord are on either side of the needle. Push the insertion tool and cord into the repair area. A small amount of cord should remain exposed above the tyre surface. Now remove the insertion tool by slowly pulling up on the handle.  The cord should remain in the repair area.
  • Trim any excess cord protruding from the tyre.
  • Reinflate the tyre and check for any levels.
