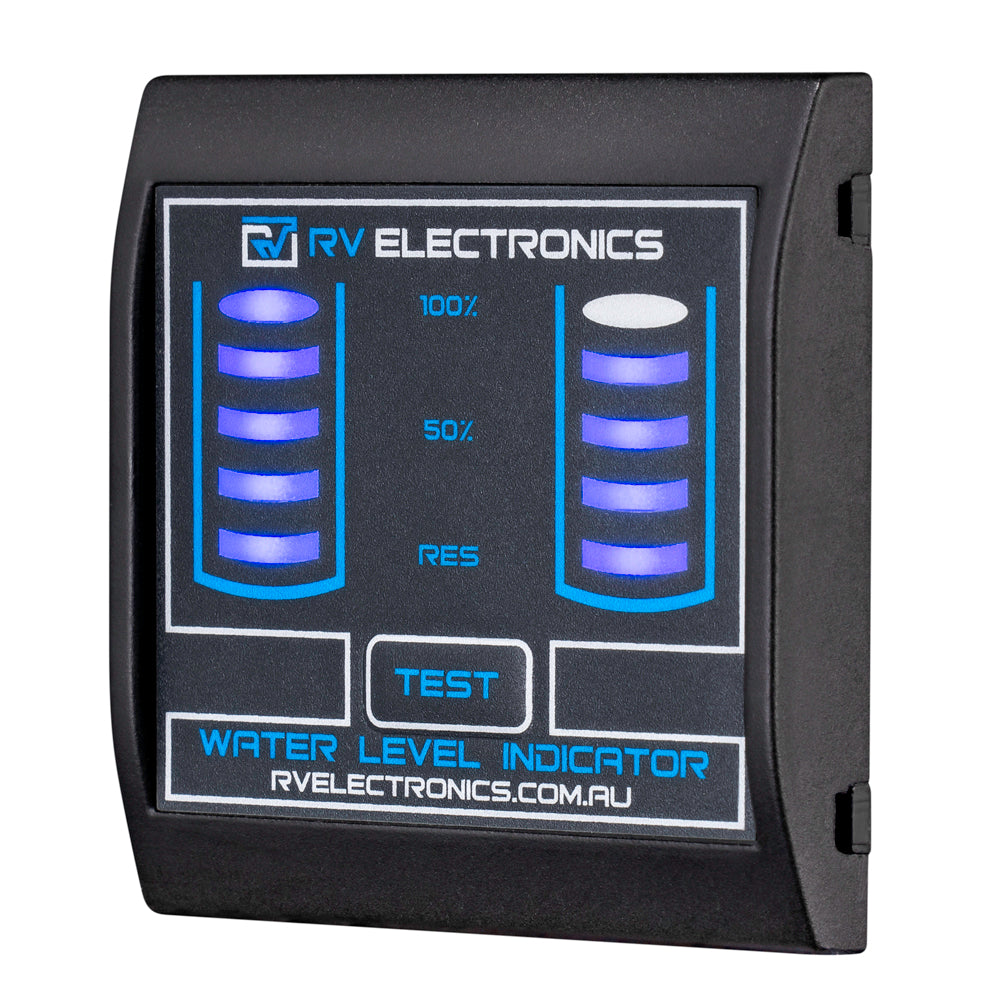

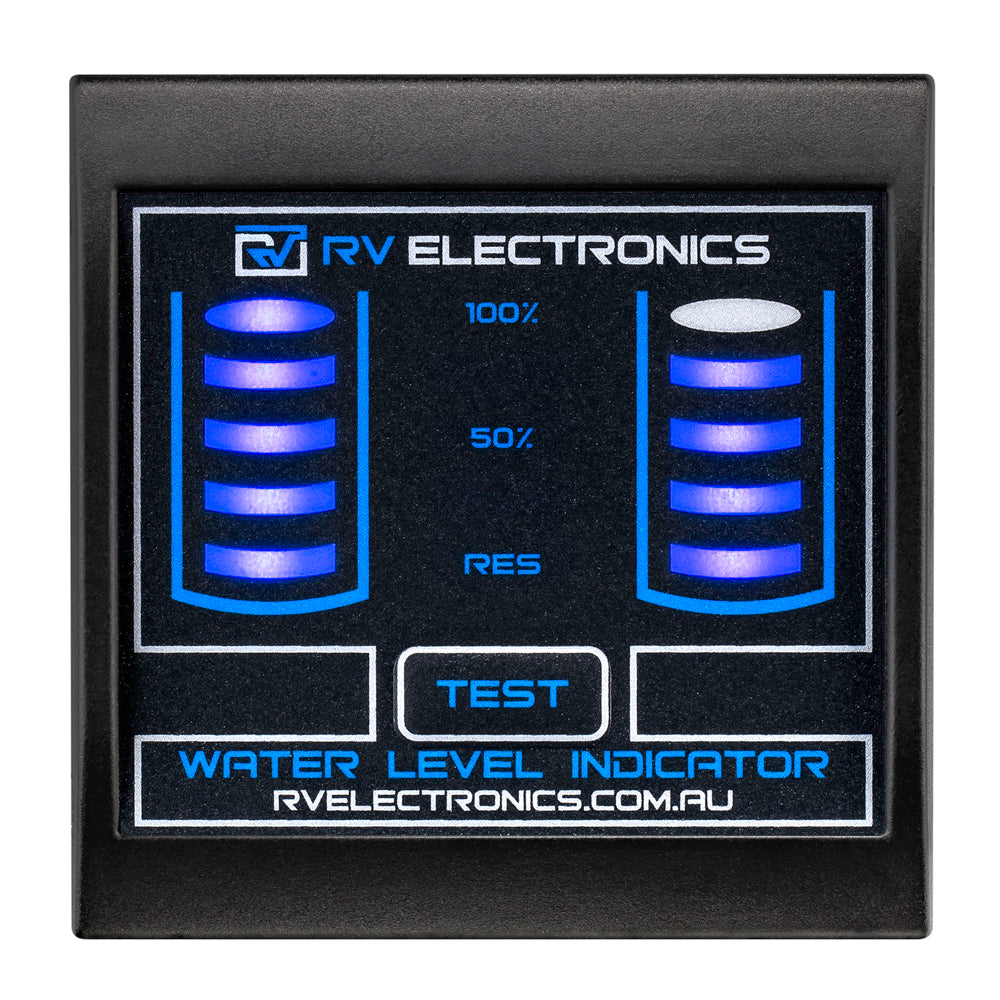

Water Gauge LED 2 x Water Monitor

$53.99
SKU: SWG0325T

This LED display gauge has 2 x water tank level gauges. 2 x water Tank sender probe/level sensors are required to be purchased separately. (See Below)

Description:

With one push of the test button you are able to monitor the water levels of up to two water tanks. There is no need to wire in a 12 volt supply as the indicator gauge comes complete with its own battery, which is easily replaced when the need arises.

This gauge is to be matched with sender probes (sold separately, see below), the sender probes are available in 2.5m, 5.0m, 7.5m cable lengths. The sender probes are easy to fit and only require one 22mm (7/8") hole in the side of the tank and suits tanks from 100mm to 280mm (4" to 11") deep. The sender probes are sealed by a special grommet which is compressed in the hole when the nut is tightened and measures the water level by contact with the 5 sensors along the arm. The probe has no moving parts.

Sender Probes:
2.5m Sender Probe
5.0m Sender Probe
7.5m Sender Probe

Features

  • Easy to install!
  • No 12V supply needed (easy to replace battery in the gauge)
  • Small enough to fit any application at 65H x 65W x 16D mm
  • Requires 2 x water tank sender probes (sold separately)

Specifications

  • Model: WG0097
  • Brand: RV Electronics
  • Product Size: 65 x 65 x 16 (HxWxD)

Downloads:

Sender Probe  Installation PDF: Click here for PDF Instructions (Sender probe is sold separately, see above)
