Long Range Digital Wireless Reversing Camera Kit 2.4Ghz

Long Range Digital Wireless Reversing Camera Kit 2.4Ghz

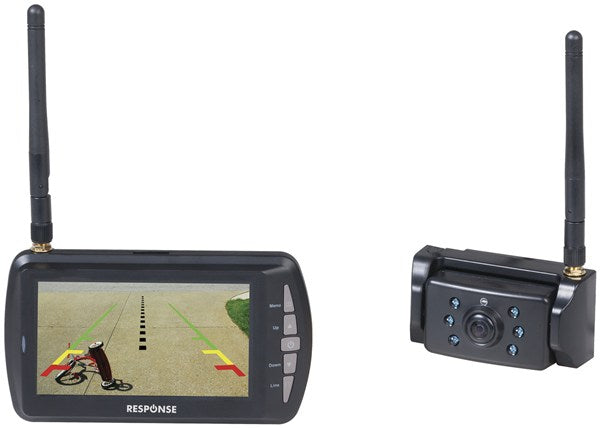

Enhance your reversing capabilities and navigate your caravan, truck, 4WD, or trailer with confidence using this wireless camera kit. This kit provides a reliable solution to detect unseen obstacles during reverse maneuvers. With its 4.3" color display and camera, you can observe with high speed and precision within a range of up to 100m, surpassing the limitations of standard reversing cameras which fall short in reaching caravans, trucks, or trailers.

Before embarking on your journey, securely install the camera and plug the monitor into your vehicle's 12V auxiliary power outlet. Pair the camera and monitor to adjust the camera angle to your preference.

You have the option to pair up to two cameras, with an additional camera (QM-3857) suitable for placement on your car or 4WD and another on your caravan or trailer. This allows for a dual camera display or individual viewing.

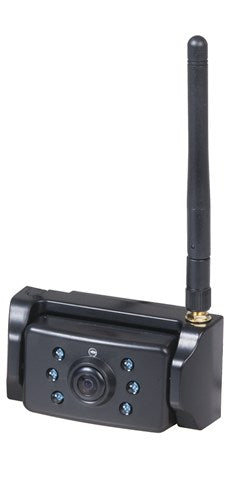

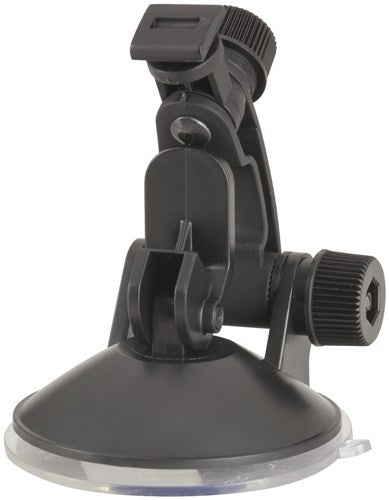

The camera is equipped with infrared night vision, an adjustable angle, and a waterproof housing, ensuring durability even in harsh weather conditions. The kit includes a suction cup mount for easy installation and a cigarette lighter plug for powering the monitor.

Features Dual Camera Display On-Screen Backup Guideline 2.4GHz Digital Wireless Technology 12/24VDC Operation 100m Transmission Range Infrared Night Vision Monitor Specifications Frequency: 2.4GHz Digital LCD: 4.3”  Resolution: 480 x 272 Range: Up to 100m  Antenna: 3dBi Voltage Input: 8-30VDC Current Consumption: Up to 250mA Dimensions: 140(L) x 87(W) x 21(H)mm Camera Specifications Frequency: 2.4GHz Digital Resolution: 720 x 480 Image Sensor: 1/3” CMOS Lens Angle: 110° Infrared LEDs: 6 Antenna: 3dBi IP Rating: IP65 Voltage Input: 8-30VDC Current Consumption: Up to 350mA Dimensions: 84(W) x 42(H) x 36(D)mm

Downloads User Manual
