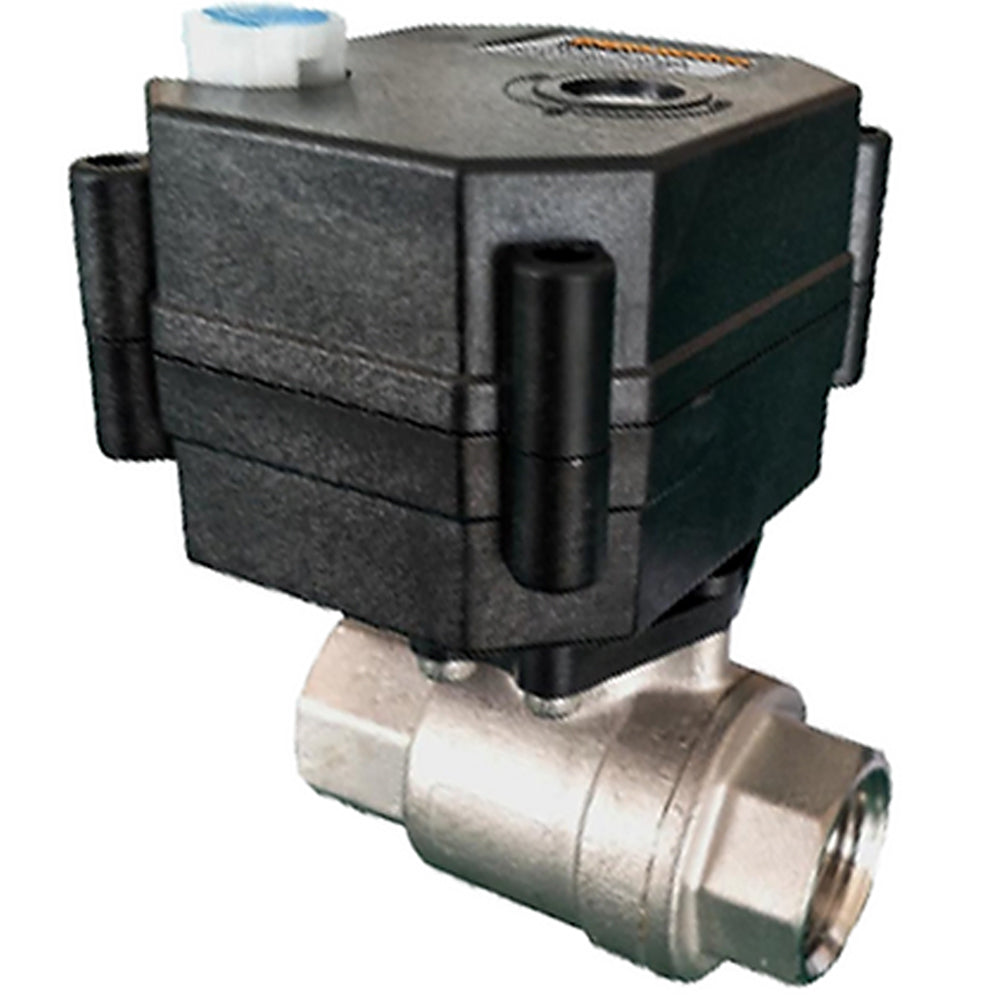

Water Tank Motorised Shut Off Valve

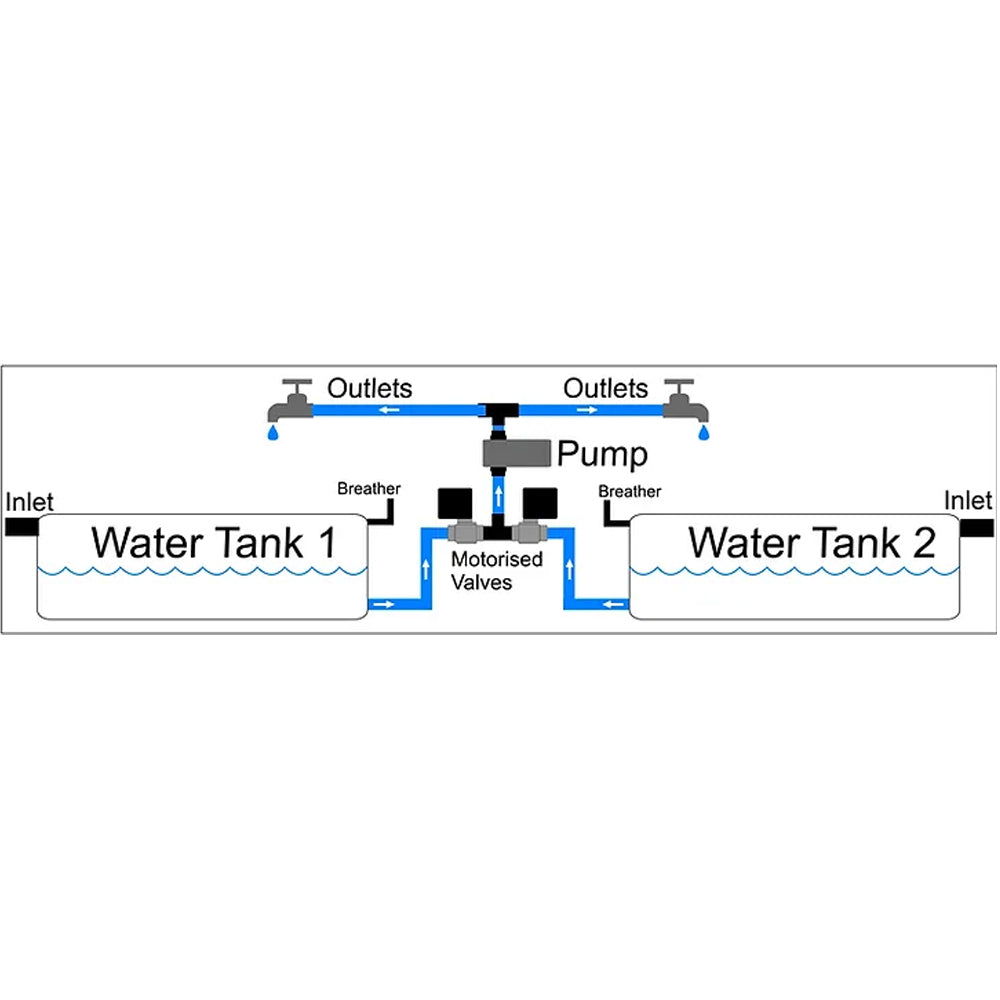

If you have multiple water tanks under your caravan our Water Tank Motorised Shut Off Valve is perfect for you. Capable of switching water tanks by just flipping a switch. No more need to switch your water tanks by going under Caravan in the middle of your shower!
Please Note: One shut-off valve is needed per water tank.
|
|
Features
- Made from quality stainless steel valve.
- Wiring setup is made easy.
- Normal ON/OFF switches can be used.
-
There is only 500mA @ 12v draw for 5 seconds when the valve opens and closes. After the power automatically shuts off.
-
Manual Override if failure or power loss. Valve position indicator allows you to open or close the valve.
Specifications

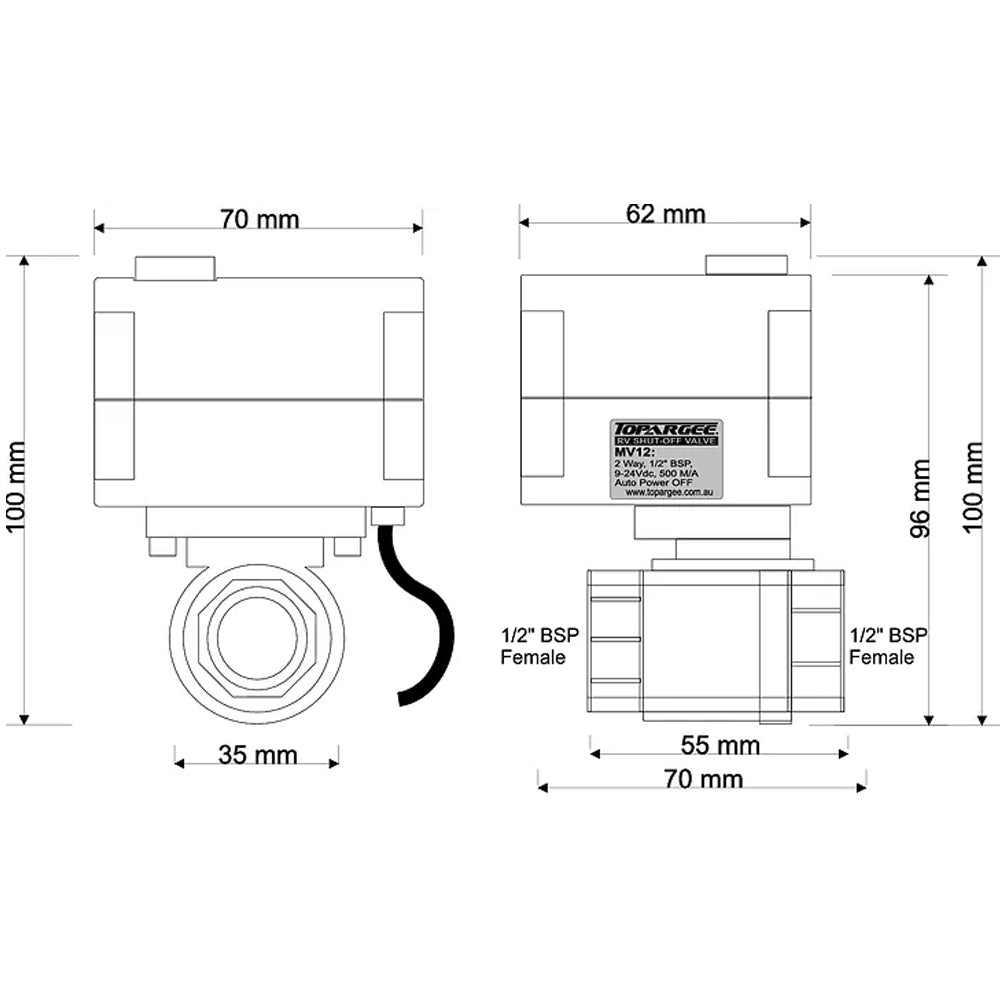

- Connection: 1/2" BSP Female Thread.
- Auto Power: Off.
- Open/Close: 5 Sec.
- Lifetime: 70,000 times.
- Liquid Temp: 2c-90c No freezing.
- Material: Stainless Steel Ball Valve.
- Certification: Drinking Water, No Lead.
- Override: Manual.
- Waterproof: 1967 Rating.
- Pressure: 1.0MPa Max Working.
- Indicator: Valve shows Open/Closed
- Flow: 14.5mm inside diameter. No restriction to flow.
- Voltage: 9-24 vdc. Not Suitable for 24v Vehicles.
- Current 500mA. Only when opening or closing.
