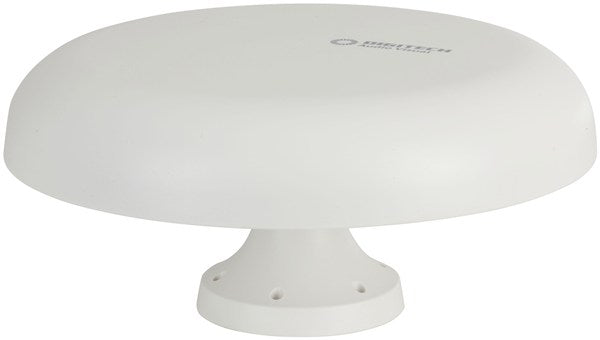

Outdoor Omni-Directional UHF/VHF Amplified Digital Antenna

$84.95
SKU: LT3141

Outdoor Omni-Direction UHF/VHF Amplified Digital Antenna!

With inbuilt low noise and high gain booster, this compact and weather resistant outdoor digital antenna is ideally suited for caravans, boats and other fixed or mobile applications where is space is at a premium or where harsh environmental conditions require a little extra durability.

Features

  • Excellent wide frequency reception for local free-to-air analogue and digital TV, DAB+ digital radio as well as FM radio transmissions.

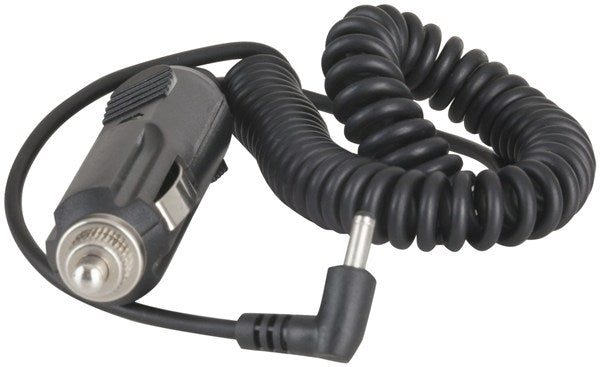

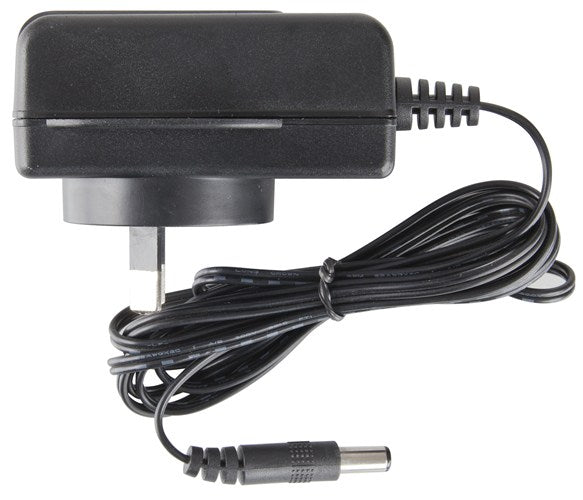

  • Includes mounting base, 12V Mains power adapter and 12V in-car charger (cigarette lighter end)

Specifications

  • SMD technology
  • Anti-rust and UV protected
  • FM 87.5-108MHz
  • VHF Frequency Range: 174-230MHz
  • VHF Channels covered: 6ch -12ch
  • UHF Frequency Range: 470-862MHz
  • UHF Channels covered: 21ch - 69ch
  • Output Level: Max 108dB
  • Impedance: 75 ohms

Mounting

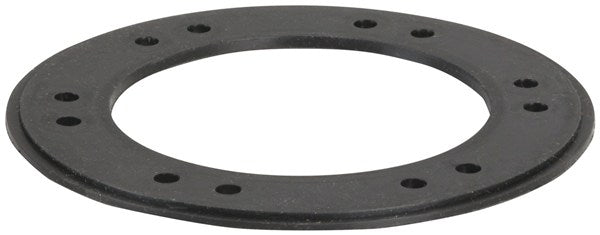

  • Screw down with supplied mounting base
  • Alternatively, the antenna can be mounted to a 1.5m Telescopic mast such as SKU: ED-4023TL - Click here to view

A very easy and tempory install would be to use the above mast and secure it to a caravan drawbar or side lifting arms on a camper trailer when at camp (would be removed for travel). A more permanent install would be to use the supplied mounting base and fasten it into the roof of the vehicle.
